12V one Channel Isolated Relay Module optocoupler High and Low Level Trigger

12V one Channel Isolated Relay Module optocoupler High and Low Level Trigger

First Come First Serve Offer (T&C Apply )

67.62
99.00 67.62
Sale Sold out
Shipping calculated at checkout.

12V one Channel Isolated Relay Module optocoupler High and Low- Level Trigger

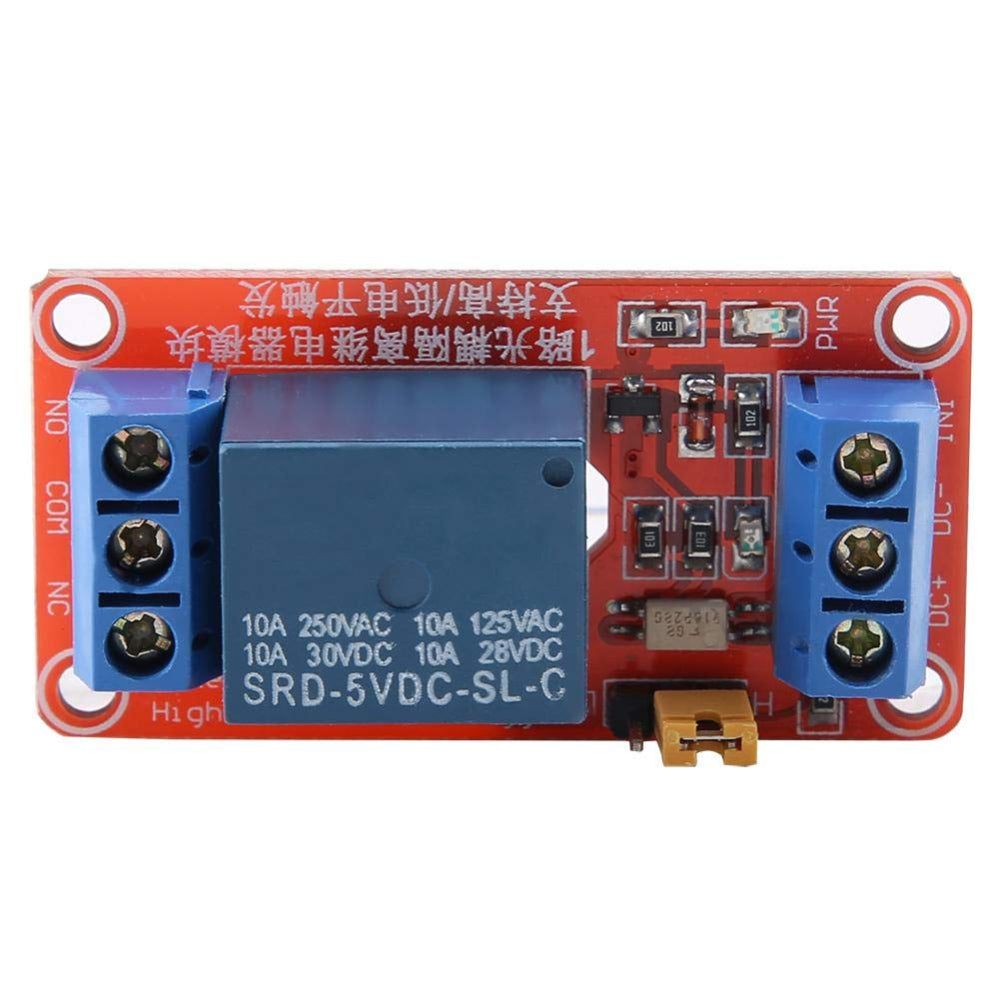

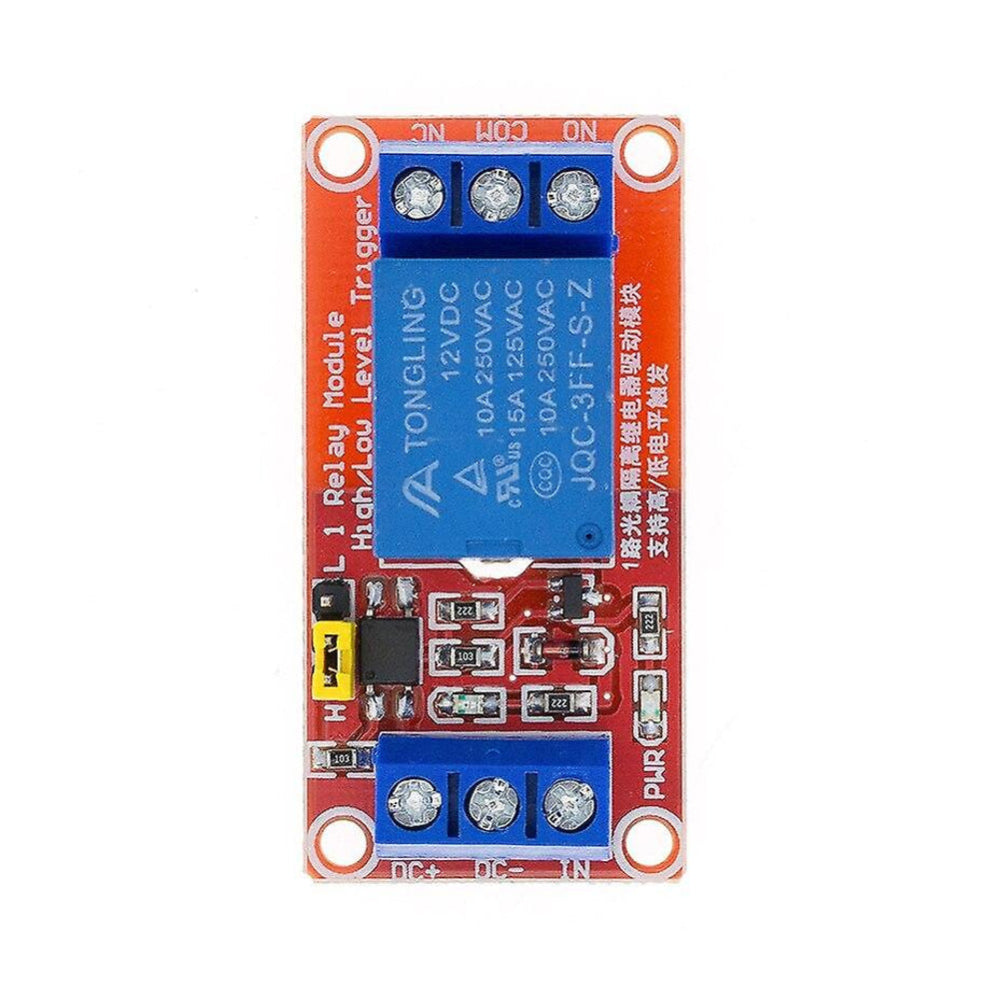

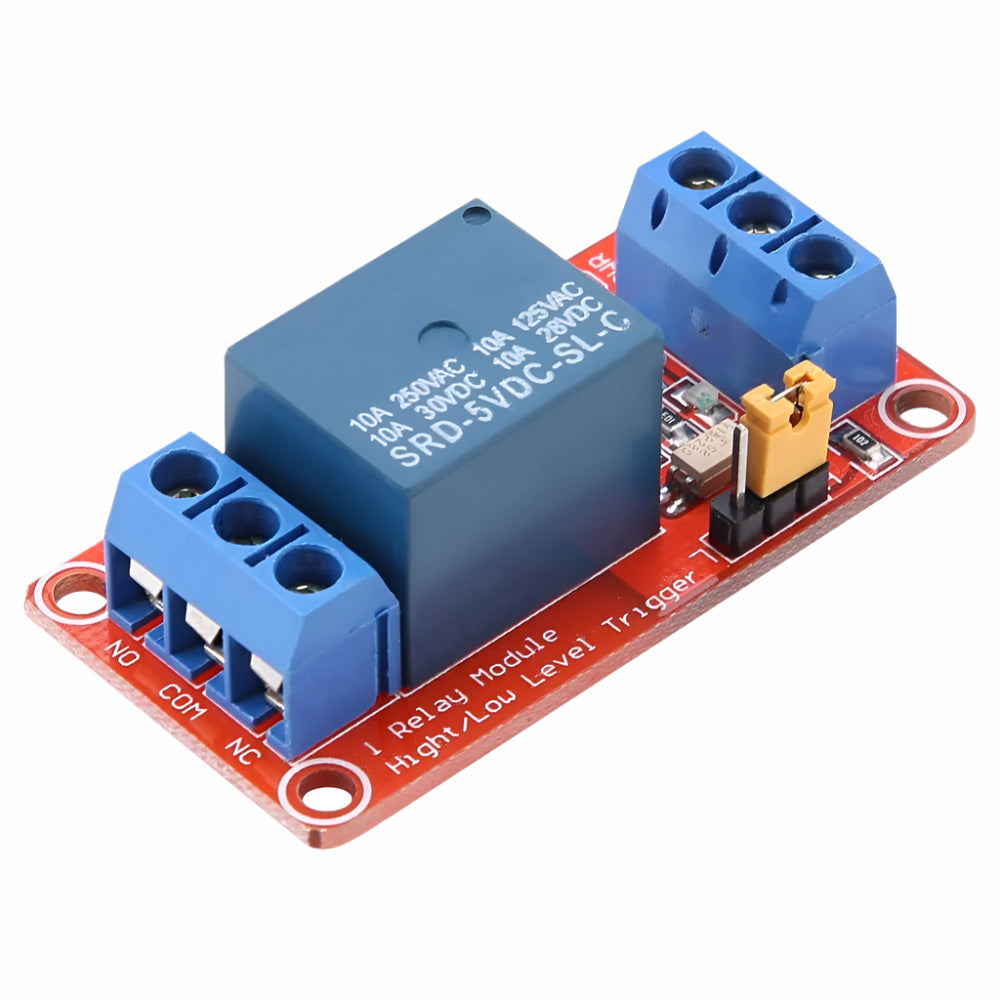

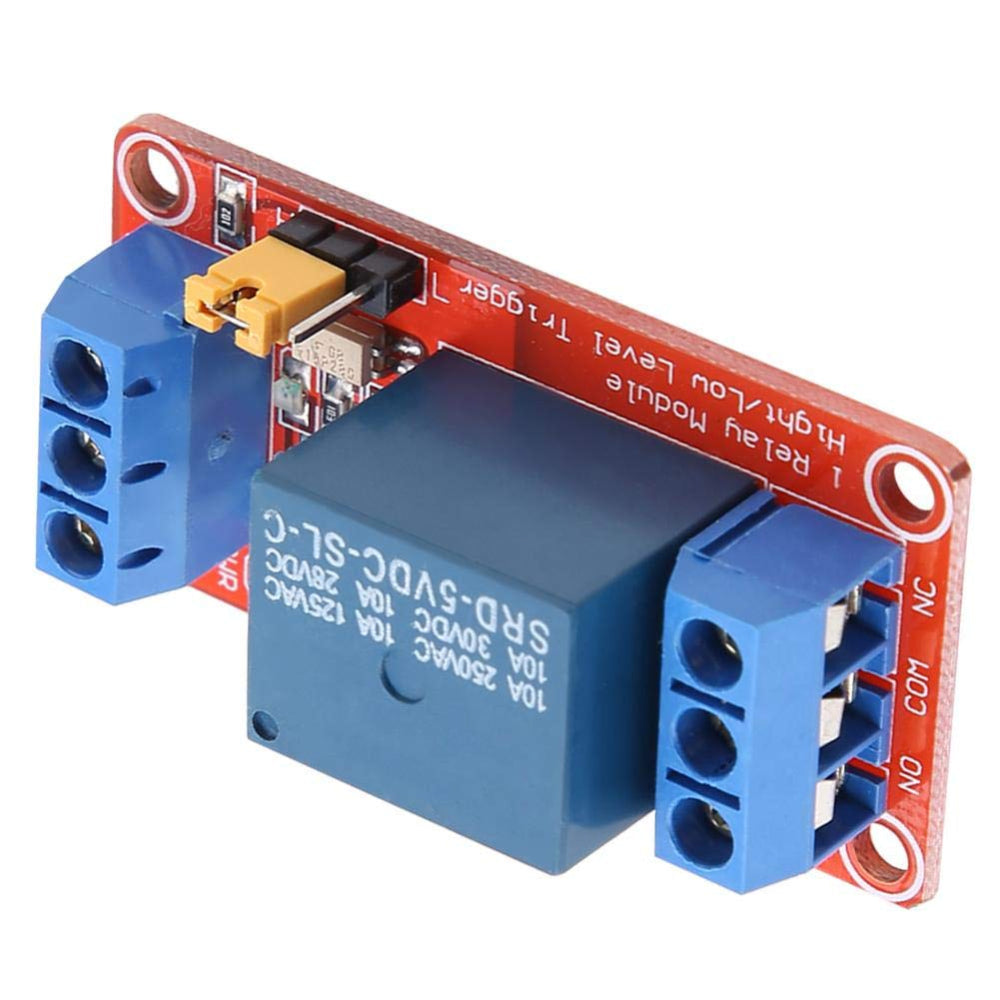

1 Channel Relay Module 12V High and Low-Level Trigger Relay Module is small and easy to use. Use it to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. Perfect for switching 240V appliances-lights, fans, etc.-and even high-power motors at lower voltages. The board uses a high-quality relay, which can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connections-common, normally open, and normally closed—brought out to three-pin screw terminals, which make it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages, from 12V to 24V. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using jumper wires. Tags, 10A 14V Relay Module, 12V 10A Relay Module, 12V Relay Module, 1 Channel Relay Module 12V High and Low Level Trigger Relay Module.

Note: The actual product may vary slightly in color and components from the image shown, depending on quantity availability.

Technical Details

  • Operating Voltage: 12VDC
  • No. of Channels: 1
  • Contact Rating: 10A @ 250VAC
  • Contact Rating: 10A @ 125VAC
  • Contact Rating: 10A @ 30VDC
  • Length: 50 mm
  • Width: 25 mm
  • Height: 20 mm
  • Weight: 16 gm

Features

  • Trigger: High or Low Level
  • Equipped with high-current relay: 15A @ 125V AC or 10A @ 250V AC
  • Standard interface compatible with microcontrollers (Arduino, 8051, AVR, PIC, DSP, ARM)

Applications :

  • Home Automation: Used to control AC appliances like lights and fans.
  • Industrial Automation: Enables safe switching of high-power machines.
  • Motor Control: Controls motors in robotics and automation systems.
  • Security Systems: Activates alarms, locks, and surveillance devices.

Physical Attributes

  • L x W x H (mm): 50 x 25 x 16
  • Weight (gm) : 16

Package Includes

  • 1 x 12V Channel Isolated Relay Module optocoupler High and Low Level Trigger
