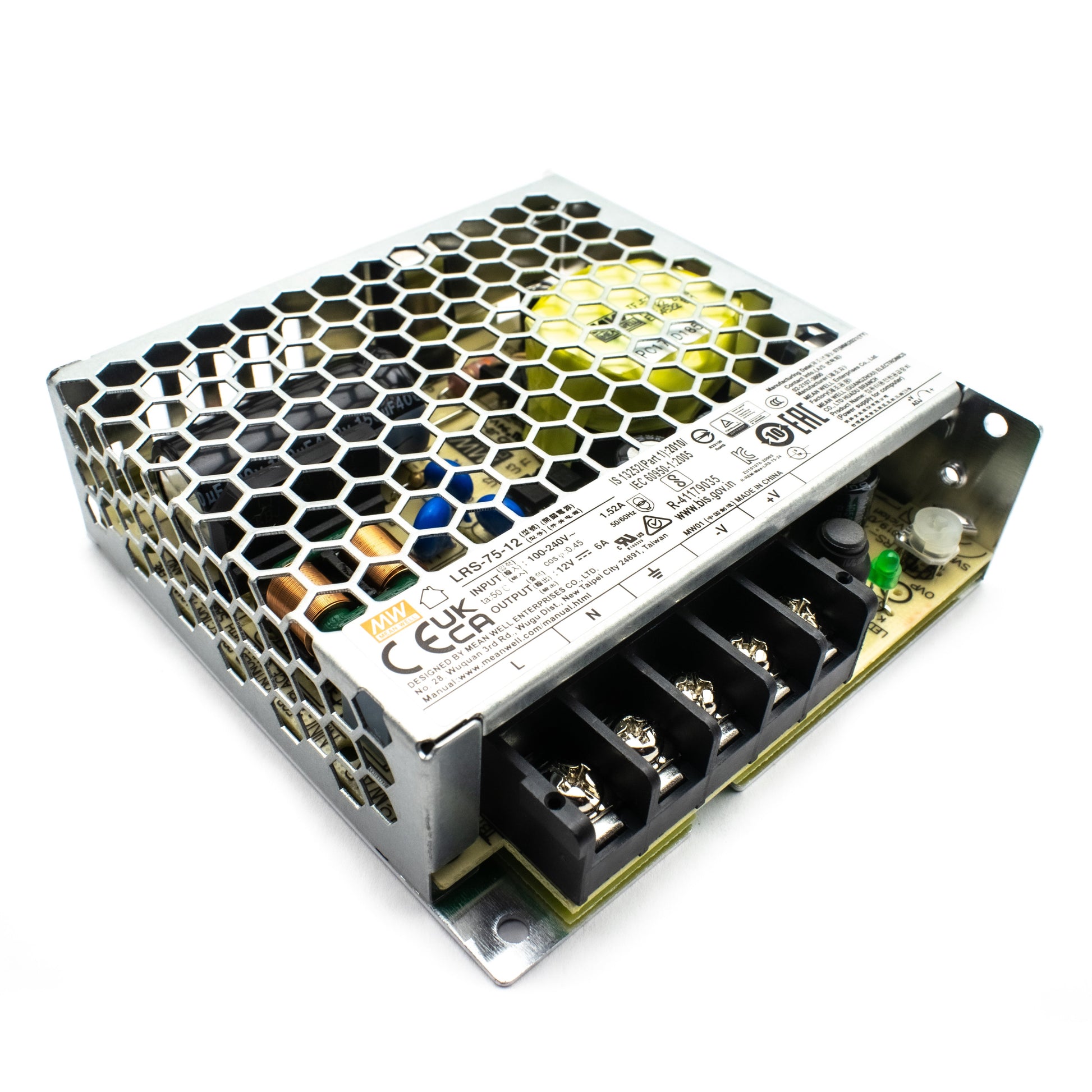

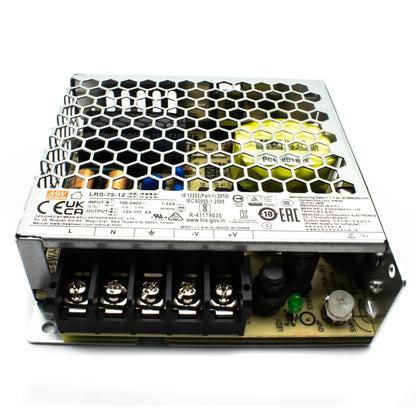

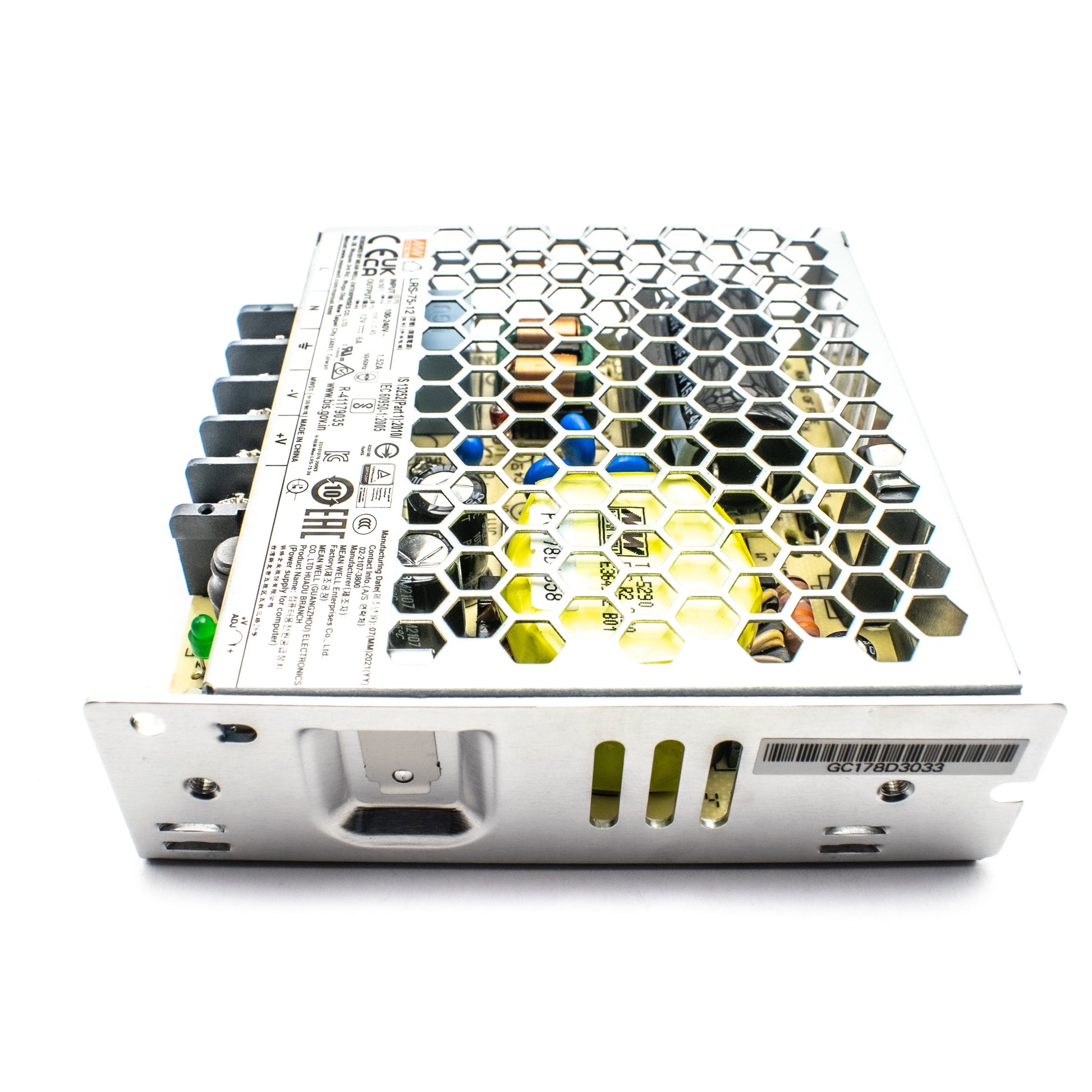

LRS-75-12 Mean Well SMPS - 12V 6A - 72W Metal Power Supply

LRS-75-12 Mean Well SMPS - 12V 6A - 72W Metal Power Supply

First Come First Serve Offer (T&C Apply )

783.02
0.00 783.02
Sale Sold out
Shipping calculated at checkout.

Meanwell's LRS-75 series is a 72W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V.  The SMPS has high efficiency up to 89%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-75 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-75 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-75 series can be used for many purposes with the best performance from it.

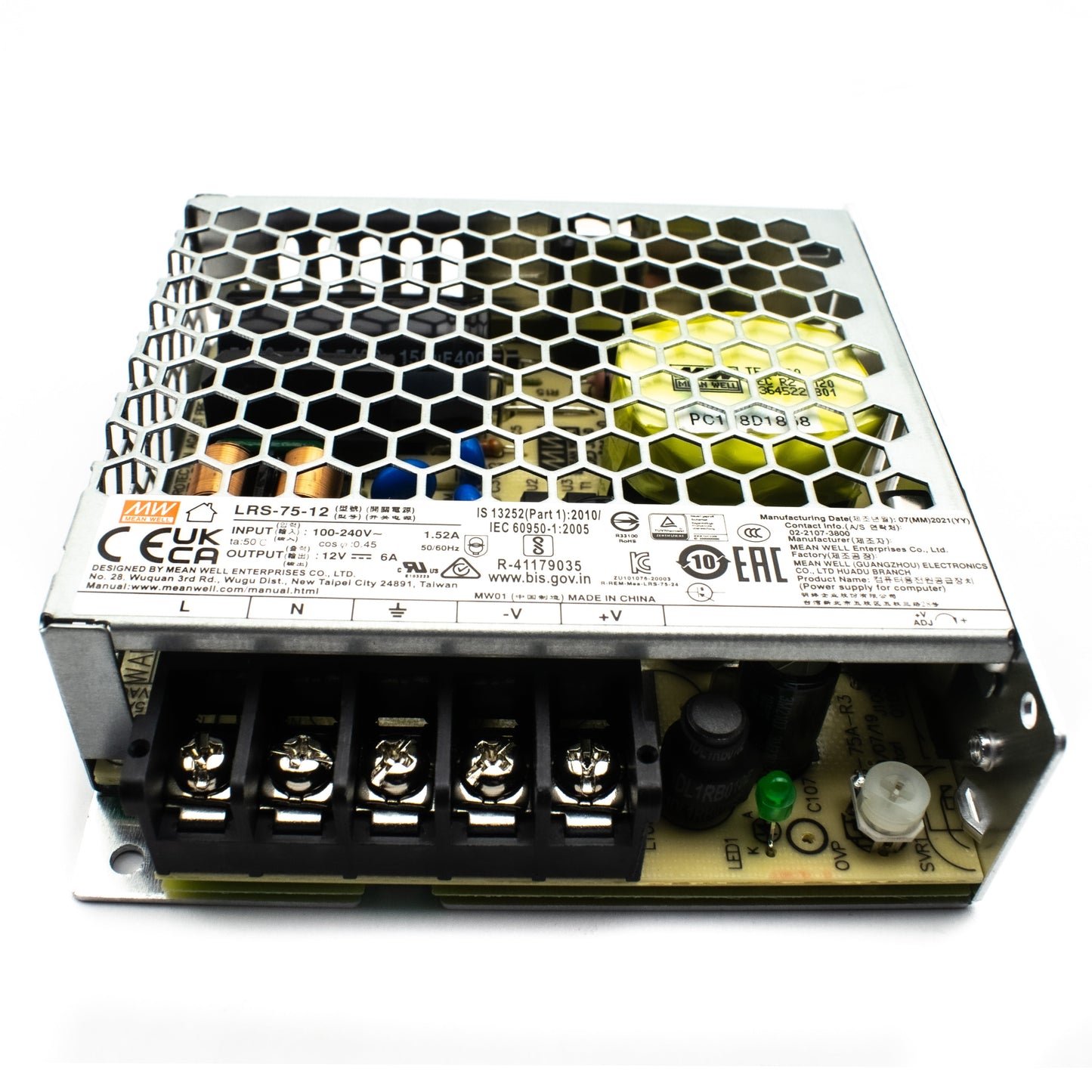

Pinout:

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (85 ~ 264VAC)
3 FG GND
4 V- DC OUTPUT -V
5 V+ DC OUTPUT +V (12V)



Features:

  • Universal AC input/ Full range
  • Protections from Short circuit, Overload and Over-voltage
  • Cooling by free air convection
  • It has a LED for indicating power on.
  • 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors for better performance
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Miniature size and 1U low profile
  • No-load power consumption<0.3W
  • High efficiency, long life and high reliability
Specifications
Input Voltage  115V~240V AC
Output Voltage 12V DC
Maximum Output Current 6A
Rated Power 72W
Efficiency 89%
Operating Temperature -30°C to 70°C
Size 98x100x30mm
Country of Origin China
