12V 2A Single Touch Switch with Time, Temperature and Intensity Control - CY-D12TOA-03CT

12V 2A Single Touch Switch with Time, Temperature and Intensity Control - CY-D12TOA-03CT

First Come First Serve Offer (T&C Apply )

789.88
0.00 789.88
Sale Sold out
Shipping calculated at checkout.

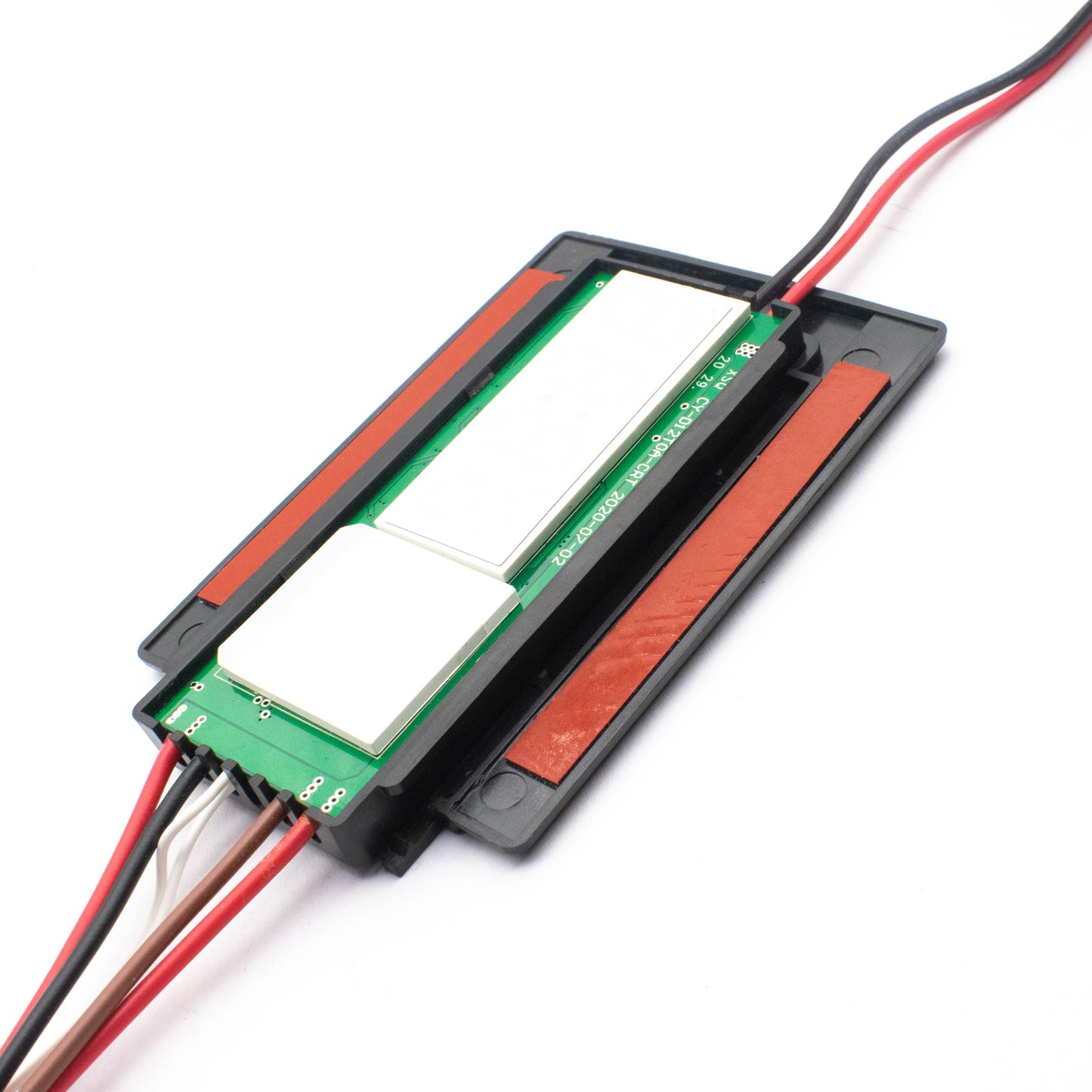

Touch Control Sensor Switch for Mirror Light can be powered by simply supplying a 12VDC. It has a switch control function to light up LED lights from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of two mirror lights, single touch switch controls both the LEDs, which means when the switch is turned on both the LEDs will be on and the same for off. It supports dimming on one channel where you can connect LED and on another channel, you can connect DC 12V Fan. The smart module not only lights the LEDs but also displays the time and temperature for 5 seconds each. The time is displayed for 5 seconds, then the temperature is displayed for 5 seconds, and so on. The module is present with a temperature sensor for getting an accurate reading of it and shows it on the screen. The module has a feature to control the brightness of a single LED strip. The touch switch has a feature of backlight, according to this as the power gets supplied to the module the touch switch starts glowing white and whenever the LED is switched on by the white colour changes to blue.

  • 12V- and 12V+, gets connected to the input 12VDC supply to power the module.
  • R+ and R-, give 12V output. It may be linked to a 12VDC-input LED strip or a 12VDC-input fan. The intensity of the LED cannot be altered using this output source.
  • LED Output is connected to the LED strip whose brightness needs to be controlled. The touch switch is used to power the LED. The LED’s brightness can be controlled by touching continuously the touch switch, it goes from bright to dim then from dim to bright and so on.
  • The time running on the module can be changed by long touching the touch switch when the LED strip is in OFF condition. The hours start blinking which means it is ready to be changed, so now adjust the hours by just touching the touch switch and for adjusting the minutes, again long touch the touch switch.

Feature:

  • Touch Control Sensor Switch works on 12V.
  • switch ON-OFF LED strip just with a single touch.
  • Sensitive to touch
  • Controlling mirror Lights
  • Shows Time and Temperature every 5 seconds
Specification
Rated Voltage 12V
Model  CY-D12TOA-03CT
Rated Current 2A
Rated Power 24W
Size 90.5x38.6x10mm
Country of Origin China
