12V 200W Meanwell SMPS (LRS-200-12)

12V 200W Meanwell SMPS (LRS-200-12)

First Come First Serve Offer (T&C Apply )

1,635.62
0.00 1,635.62
Sale Sold out
Shipping calculated at checkout.

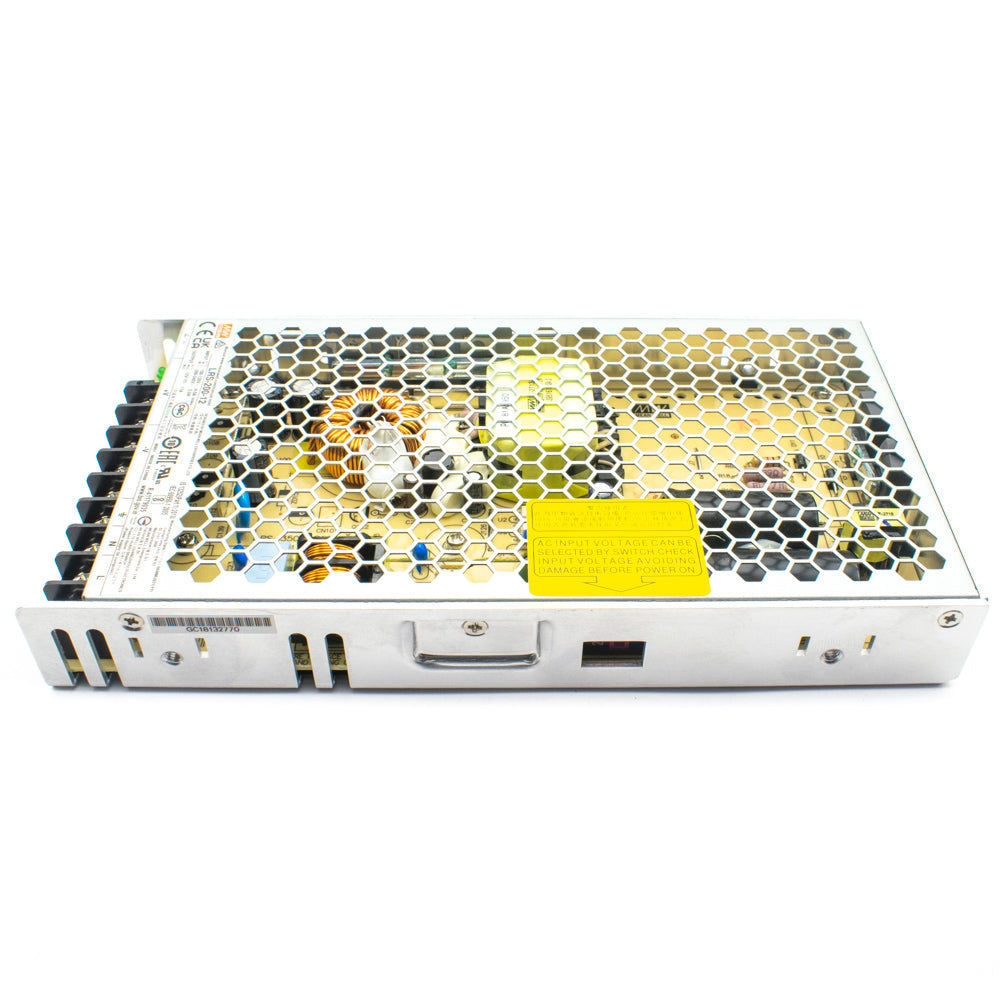

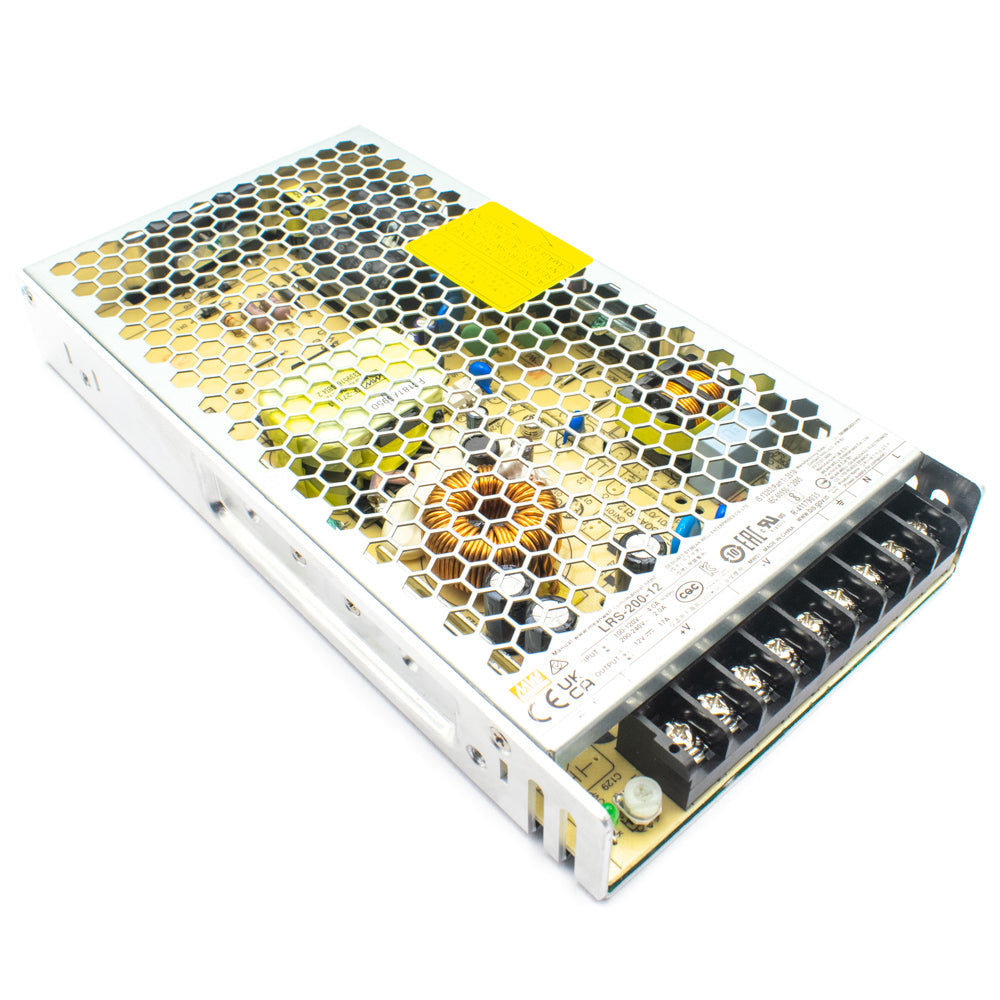

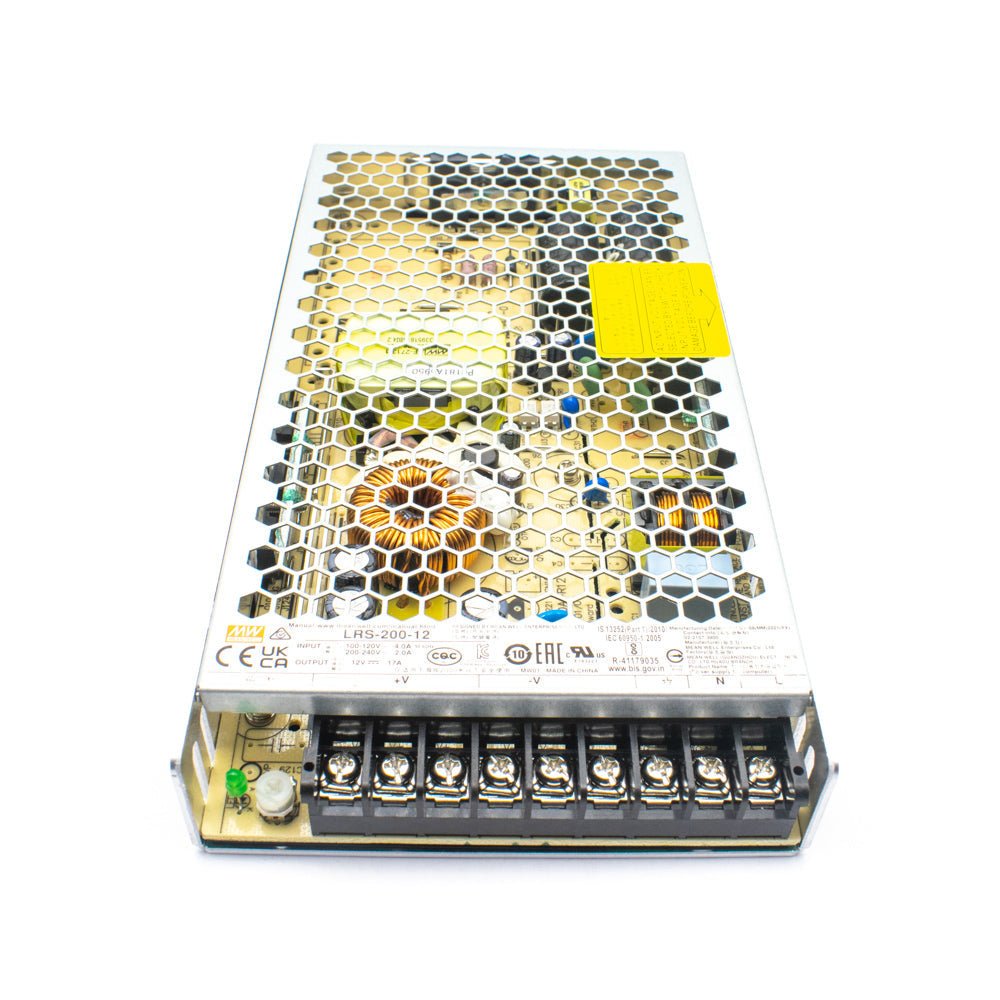

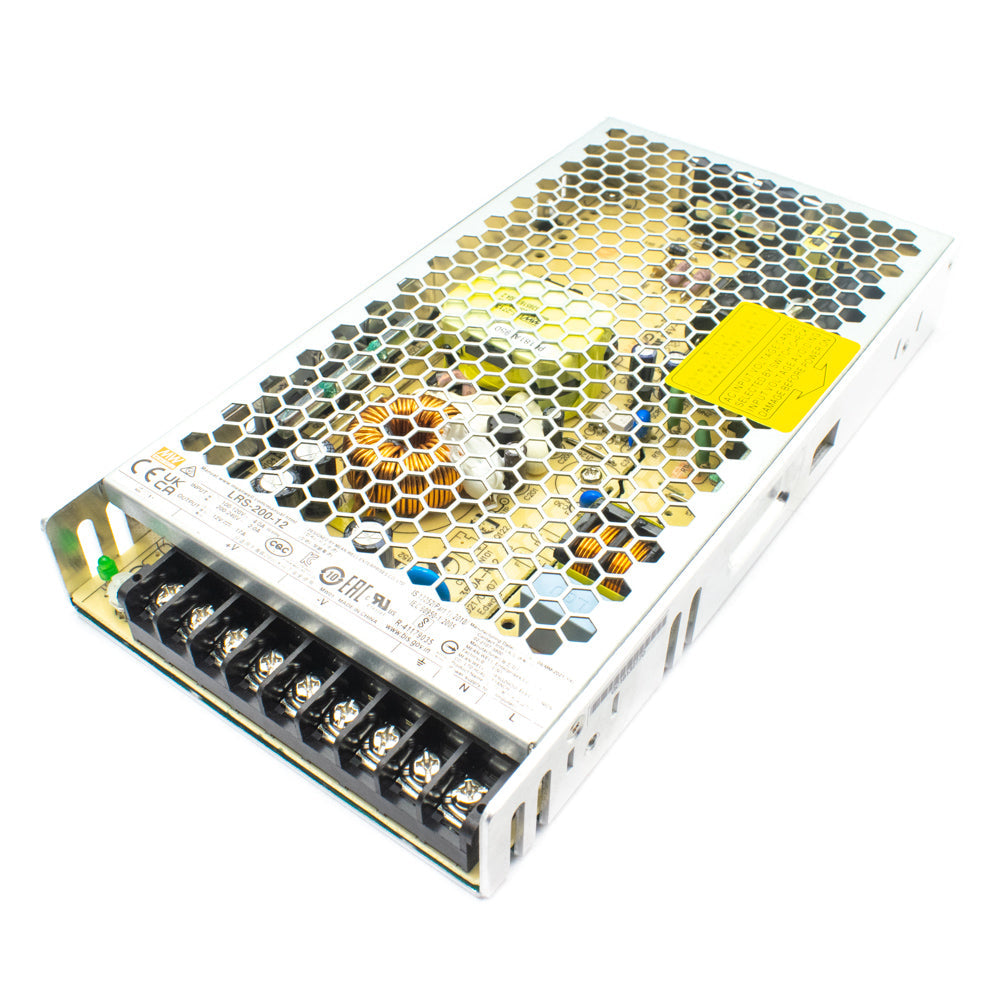

Meanwell's LRS-200-12 is a 204W 12V 17A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and provides a 12V output with a maximum load current of 17A. In addition to the high efficiency of up to 90%, the design of the metallic case enhances the heat dissipation of LRS-200-12 that operates from -25°C to 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.75W), allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-200-12 has complete protection functions and 5G anti-vibration capability; it complies with the international safety regulations such as UL 60950-1. Meanwell's LRS-200-12 is a high-quality Industrial Grade SMPS. The LRS200-12 SMPS is a 200 watt SMPS that outputs 12 volts. Meanwell's LRS-200 -12 switching power supply has a mesh casing and is simple to install.

Feature

  • AC input range selectable by switch
  • Withstand 300V AC surge input for 5 second
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Cooling by free air convection
  • 1U low profile
  • Withstand 5G vibration test
  • LED indicator for power on
  • No-load power consumption<0.75W
  • 100% full load burn-in test
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
 Specifications
Model LRS-200-12
Brand Meanwell
DC Voltage 12V
Rated Current 17A
Rated Power 204W
Ripple & Noise 150mVp-p
Voltage Adj. Range 10.2~13.8V
Voltage Tolerance 1.5%
Line Regulation 0.5%
Load Regulation 1%
Setup, Rise Time 1300ms, 50ms/230V AC,
1300ms, 50ms/115V AC at full load
    Hold Up Time

    16ms/230V AC, 12ms/115V AC at full load
    Voltage Range

    90~132V AC/ 180~264V AC by switch 240~370V DC (switch on 230V AC)
    Frequency Range

    47~63Hz
    Efficiency

    87.5%
    AC Current

    4A/115V AC, 2.0A/240V AC
    Over Load 110~140% rated output power
    Hiccup mode recovers automatically after the fault condition is removed.
      Over Voltage

      13.8V~16.2V
      Working Temperature

      -25°C to 70°C
      Working Humidity

      20~90%
      Size

      215x115x30mm
      Country of Origin China
