12V 10A 8-Channel OptoCoupler Relay Board Module

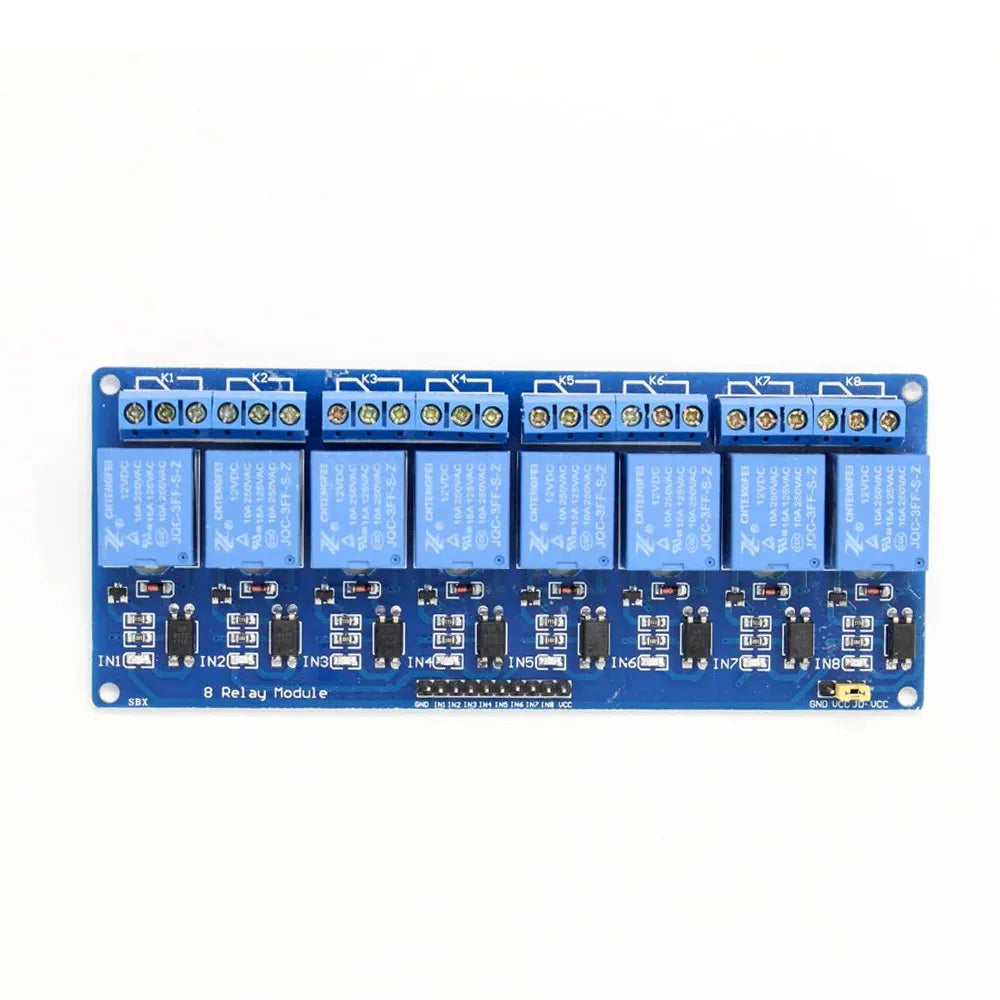

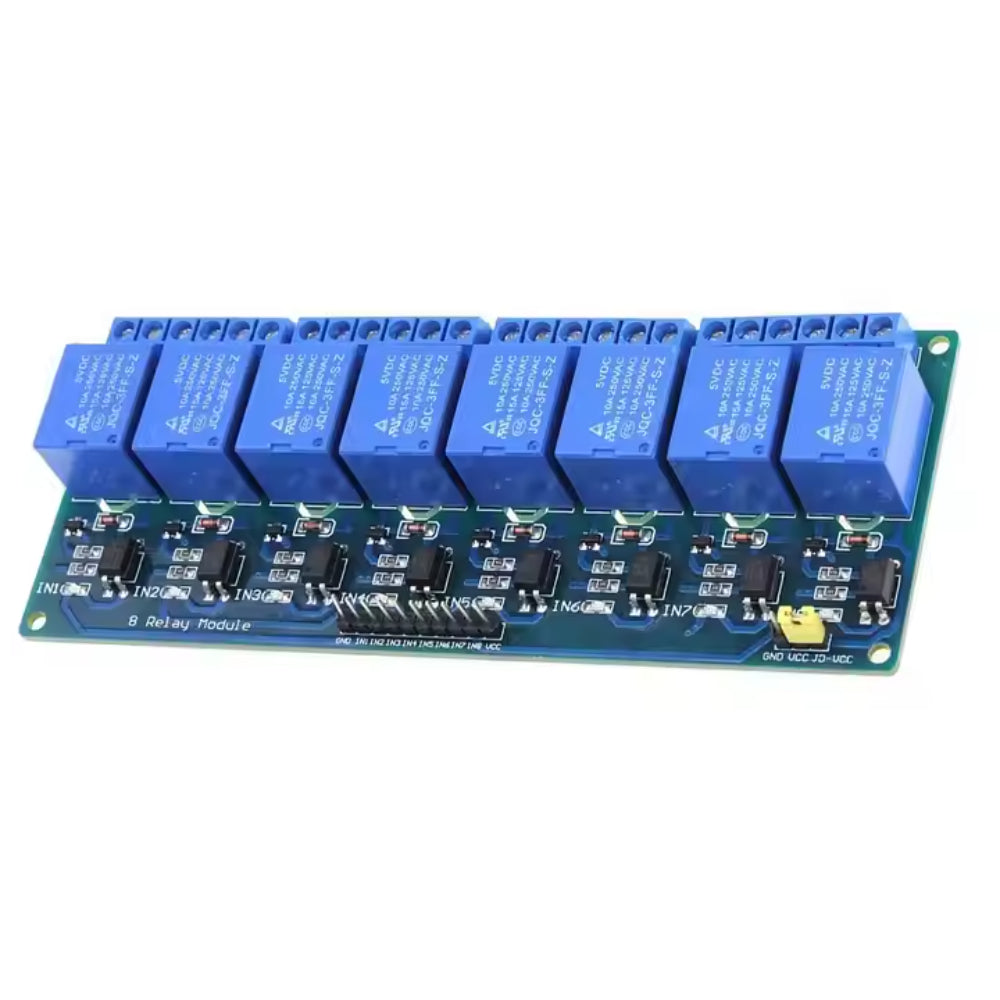

It is an 8 Channel Isolated 12V 10A Relay Module opto coupler, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other types of equipment with a large current. Relay output maximum contact is AC250V 10A and DC30V 10A.

One can connect a microcontroller with standard interface directly to it. Red working status indicator lights are conducive to the safe use. The 8 Channel Isolated 12V 10A Relay Module opto coupler has a wide range of applications such as all MCU control, industrial sector, PLC control, smart home control.

So, ready to get switching on your Raspberry Pi?! This neat relay module features 8 x 12V relays rated at 10A/250V each. It is designed to switch up to 4 high currents (10A) or high voltage (250V) loads with the help of microcontroller!

Each relay can individually switch to on/off state. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 12V. This makes it ideal for 3.3V, 12V & 12V devices.

Note: On the high level and low level-triggered mode, friends who do not understand, have a look

High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered away;

Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as the signal input terminal and the GND negative electrode short circuit triggered away 1-channel relay module connection.

Technical Details

  • Model Type: Relay Module
  • No. of Channels: 8
  • Operating Voltage: 12 VDC
  • Switching Voltage: 250 VAC @ 10A / 30 VDC @ 10A
  • Dimensions: 135 x 56 x 18 mm
  • Weight: 108 g

Features

  • Power and relay indicators (lit when on).
  • Input signal starts conduction with common terminal.
  • Controls DC/AC signals, 220V AC load.
  • Normally open and closed contacts.
  • Triode drive and enhanced relay coil.
  • High impedance controller pin.
  • Pull-down circuit to prevent malfunction.
  • Power and control indicator lamps.
  • Compliant with international safety standards.

Applications :

  • Home Automation: Controls multiple appliances with electrical isolation for safety.
  • Industrial Control: Manages heavy-duty equipment like motors and pumps.
  • Microcontroller Projects: Interfaces with microcontrollers to switch high-voltage devices.
  • Security Systems: Controls alarms, locks, and other security devices.
  • Power Management: Switches high-power devices in automated systems.

Integration with Arduino

Eight Channel 12V Relay Module With Optocoupler



Sample Code

Integration with Raspberry Pi

Eight Channel 12V Relay Module



Sample Code

Physical Attributes

  • Dimensions: 135 x 56 x 18 mm
  • Weight: 108 g

Package Includes

  • 1 x 12V 10A 8-Channel OptoCoupler Relay Board Module
