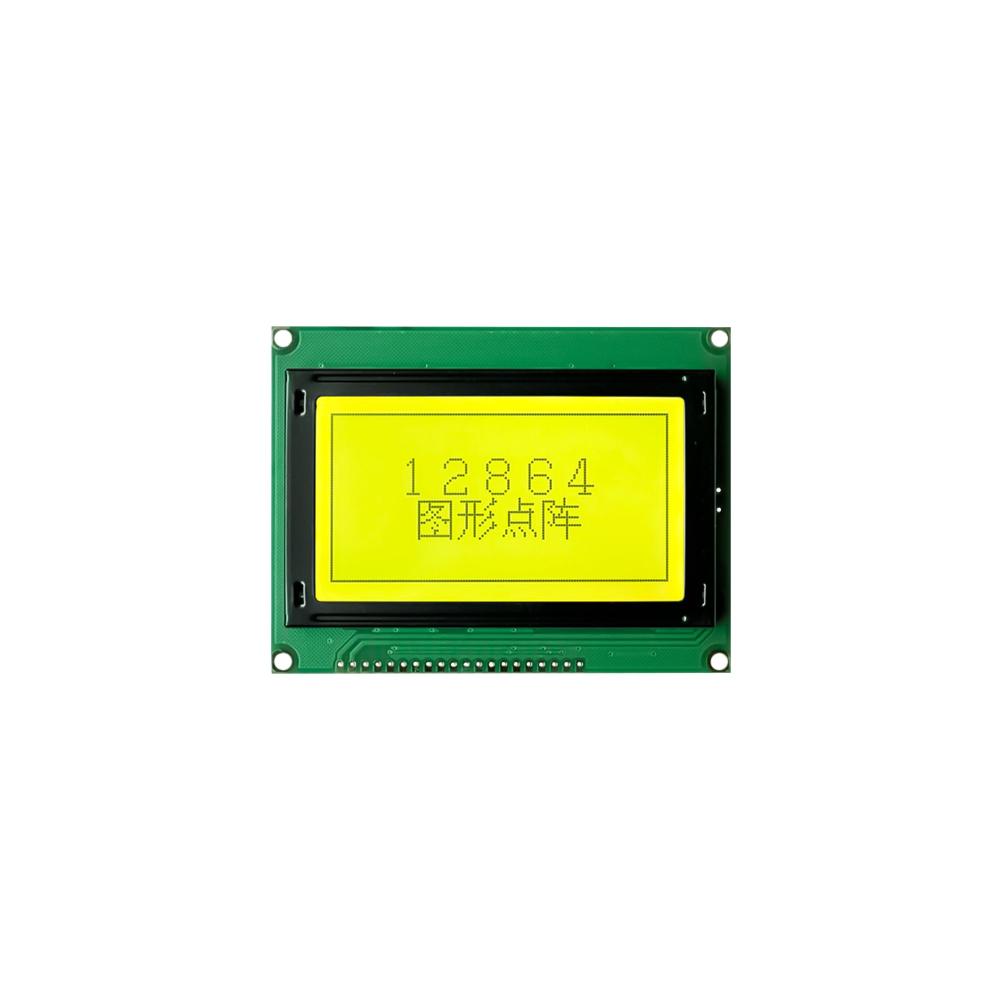

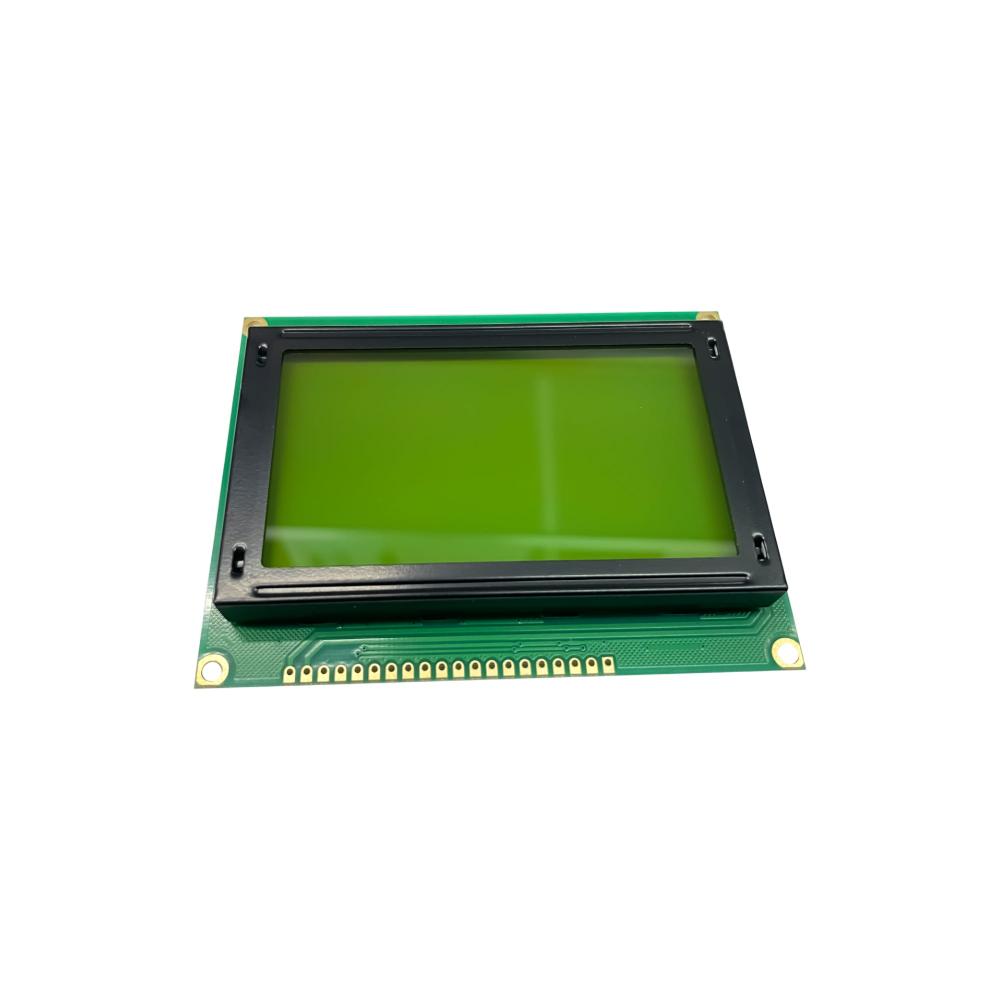

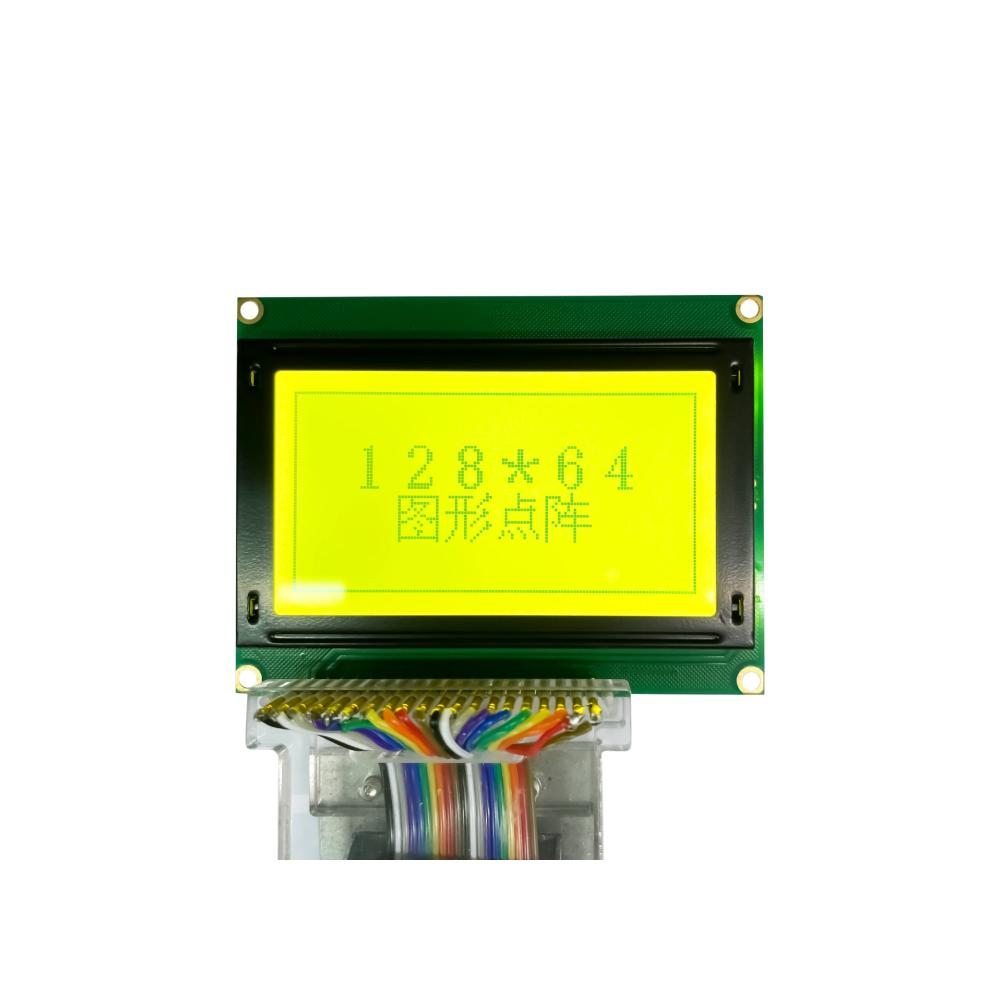

12864 JHD Original Graphic Character LCD Display module Green Color
12864 JHD Original Graphic Character LCD Display module Green Color
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

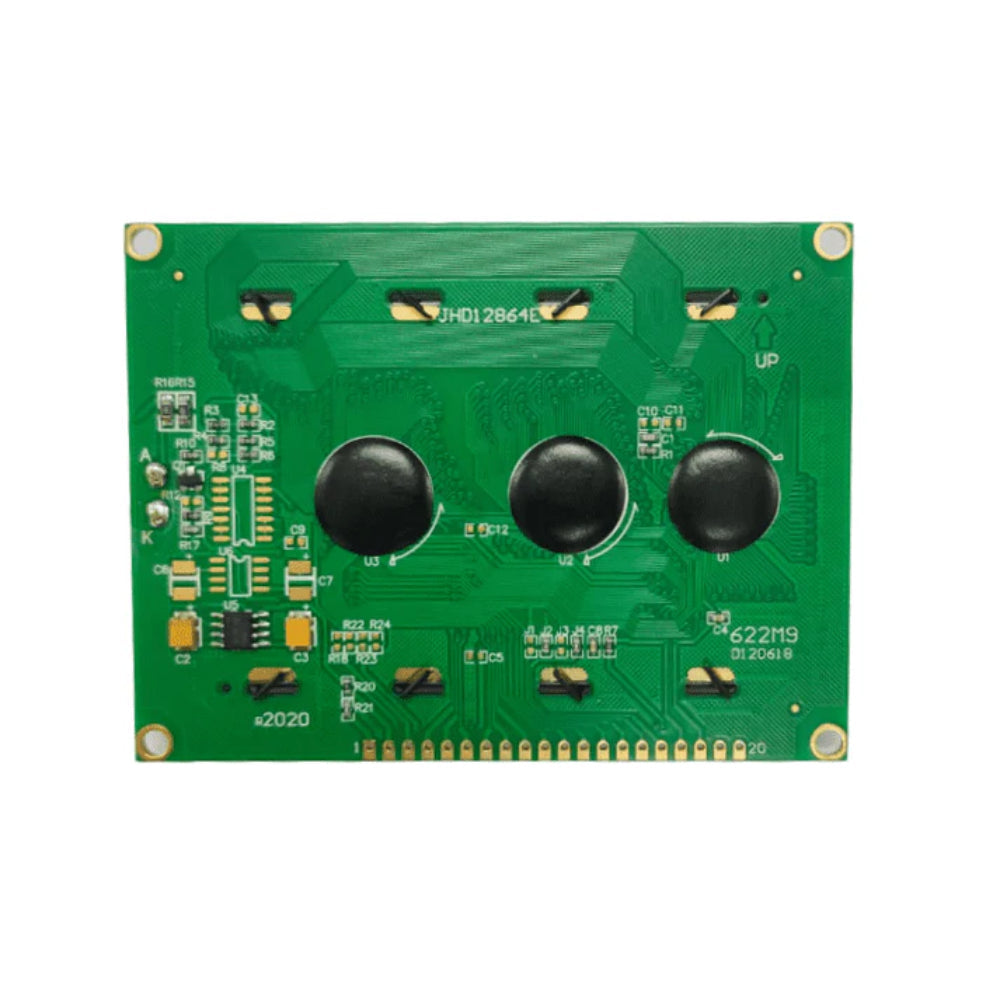

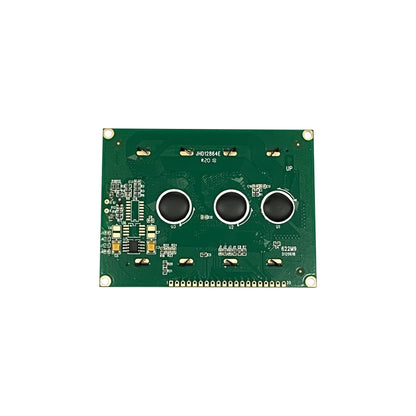

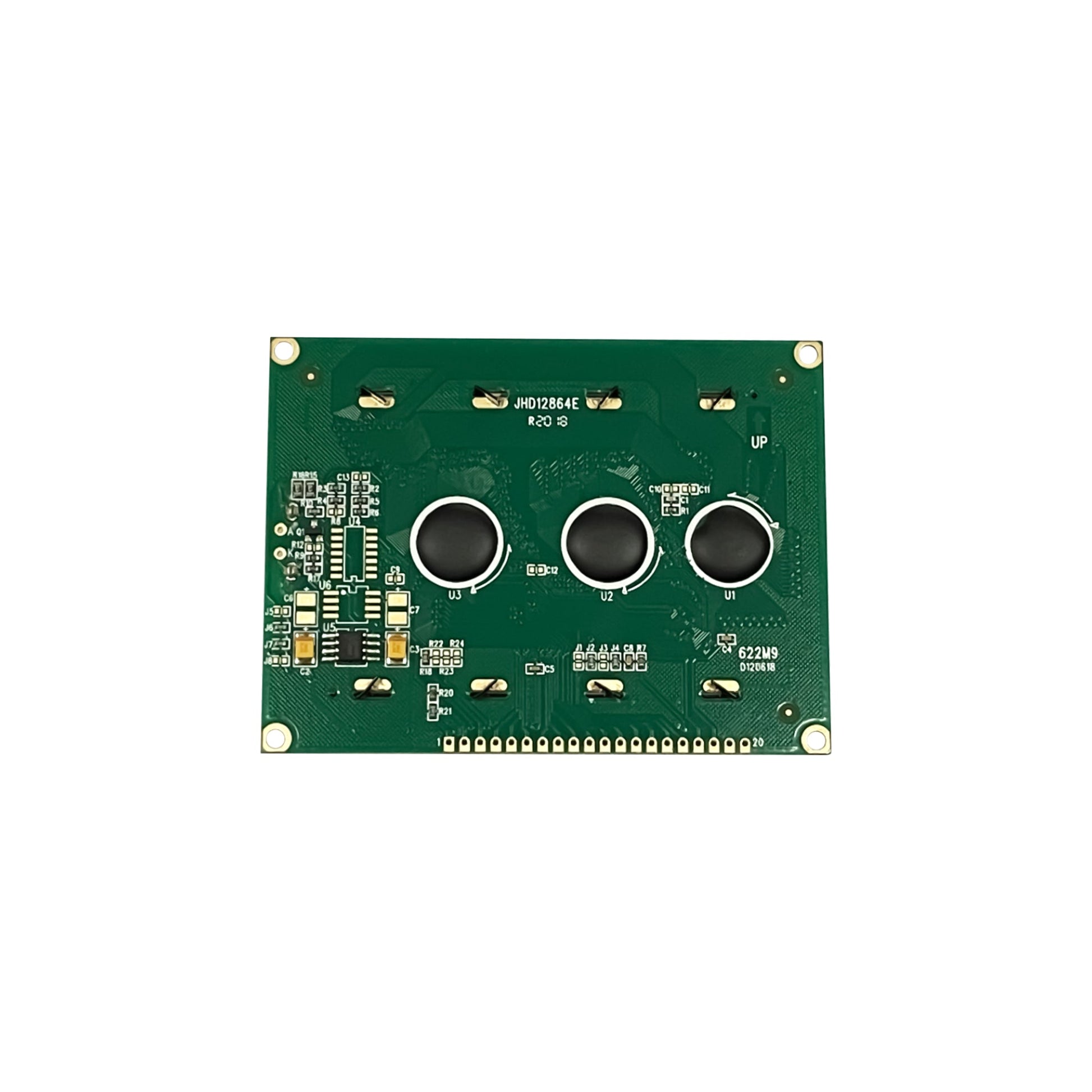

The module is fully programmable and provides functions like drawing lines, circles, and boxes, setting or redefining individual pixels, clearing specific areas of the display, and controlling the backlight. It also enables baud rate adjustments. Commonly used as a RAMPS extension accessory in 3D printers, the display is straightforward to connect to various projects, including Arduino. The pin configuration is clearly documented on the back of the LCD for easy wiring. This display serves as an excellent graphical upgrade for traditional 16x2 LCDs.
Features:
Display Resolution: 128x64 pixels, allowing for detailed graphics and text.Backlight: Yellow backlight for clear visibility in different lighting conditions.
Controller: Typically uses the KS0108 controller, compatible with many microcontrollers.
Interface: Supports multiple communication interfaces, including parallel and SPI.
Voltage: Operates on 5V.
Viewing Angle: Wide viewing angle for better visibility.
Operating Temperature: Suitable for a range of temperatures, typically from -20°C to 70°C.
Applications: Ideal for kiosks, metering applications, handheld devices, and more.
Technical Details
- Model Type: Original JHD LCD
- Backlight Color: Green
- Display Format: 128x64 dots
- Controller: KS0108
- Interface: 8-bit parallel interface or serial SPI modes
- Power Supply Voltage: 5V
- Operation temperature: -20°C to +70°C
- Length (mm):93.2
- Width (mm): 70.2
- Height (mm): 14
- Weight (g): 75
Applications:
- Displaying readings in multimeters and power meters
- User interface for portable billing and transaction devices
- Displaying temperature, humidity, and environmental data
- Showing status, battery levels, and critical info
- Used in retro gaming consoles and custom game projects
- Displaying graphics and text in older mobile models
- Showing floor numbers, status messages, and other information
Physical Attributes of oled display module
- Length (mm):93.2
- Width (mm): 70.2
- Height (mm): 14
- Weight (g): 75
Outline Drawing
Package Includes
- 1 x 12864 JHD Original Graphic Character LCD Display module Green Color
