10W AC-DC Inverter LED Bulb's Driver PCB

10W AC-DC Inverter LED Bulb's Driver PCB

First Come First Serve Offer (T&C Apply )

127.40
0.00 127.40
Sale Sold out
Shipping calculated at checkout.

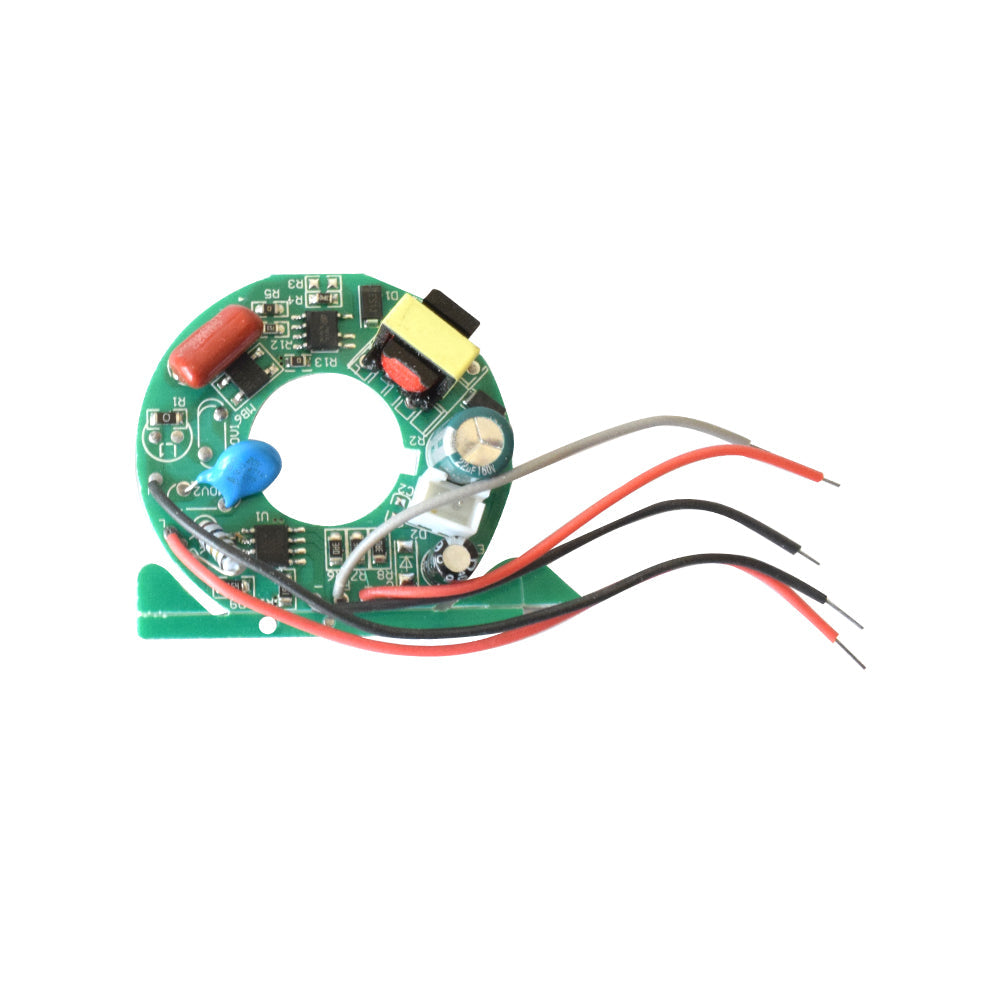

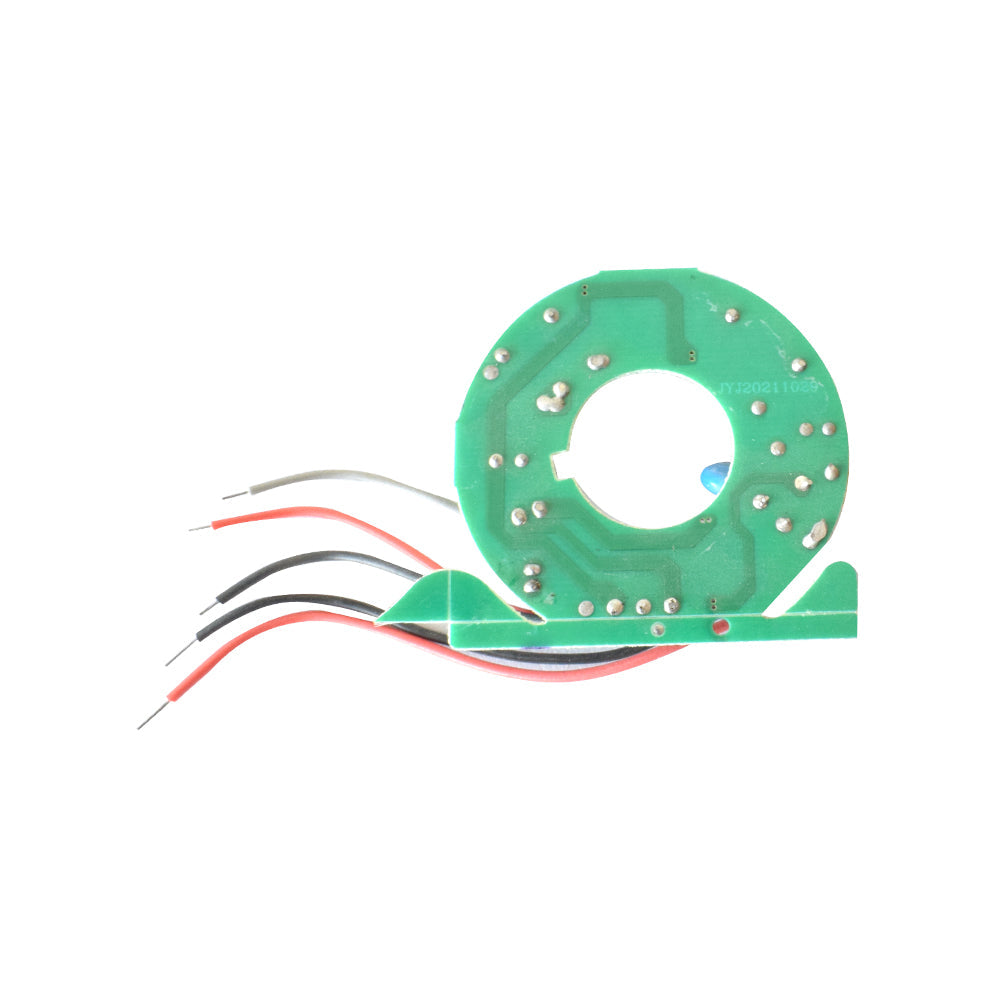

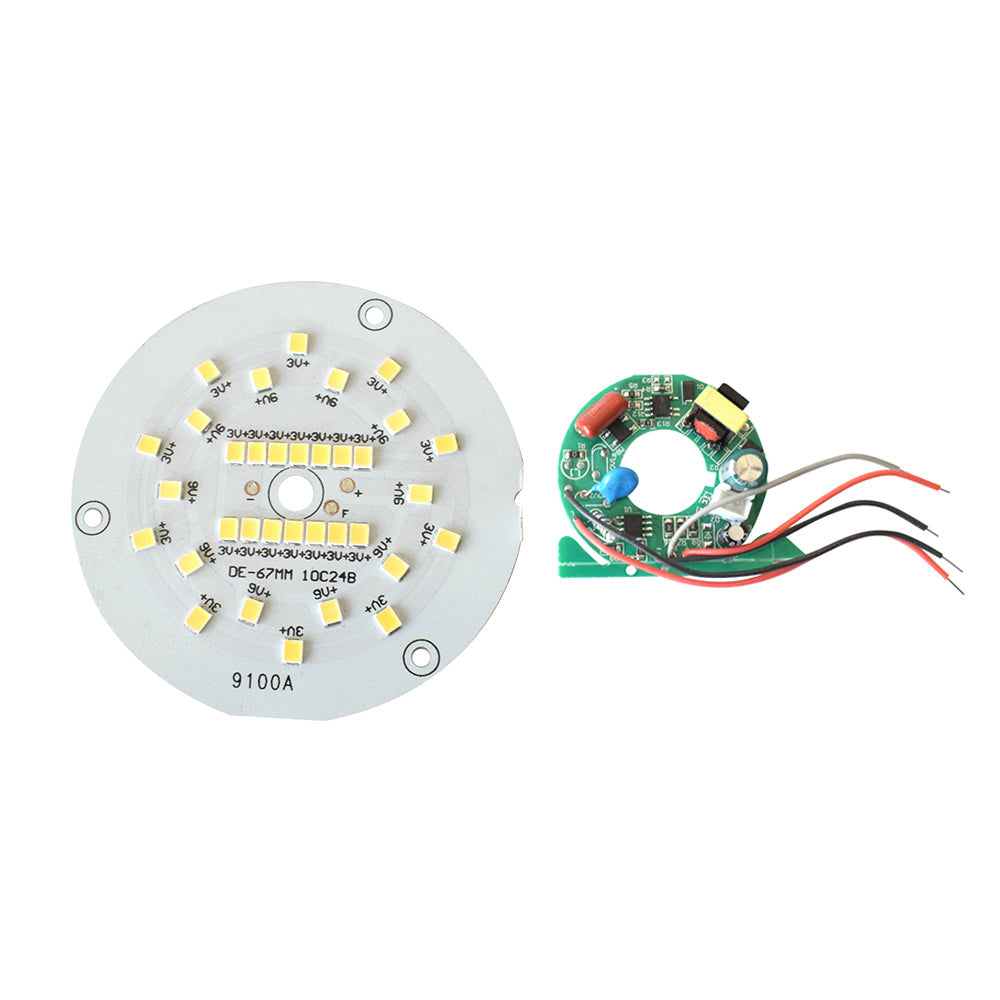

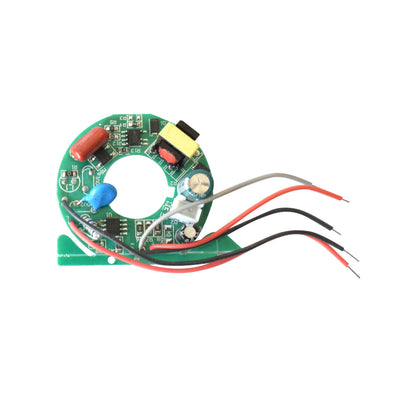

This is a 10 Watt AC-DC Inverter LED Bulb's Driver PCB which used in both way AC and DC, It has a transformer to step down the AC Voltage, it has a four pin bridge rectifier IC (MB10F) to rectify the AC signal in to DC signal for charge battery. It has one non isolated IC which has 8 Pins , and it has a driver IC is used to drive the led, It has a Connector and has four wires in which two wires  are for AC input and other two wires are for DC output.

Features:

  • Its input voltage is 100-305V
  • Its frequency is 50-60Hz
  • Its output current is 300mA
  • It has four wire two wires are for input
  • And the other two wires are for output

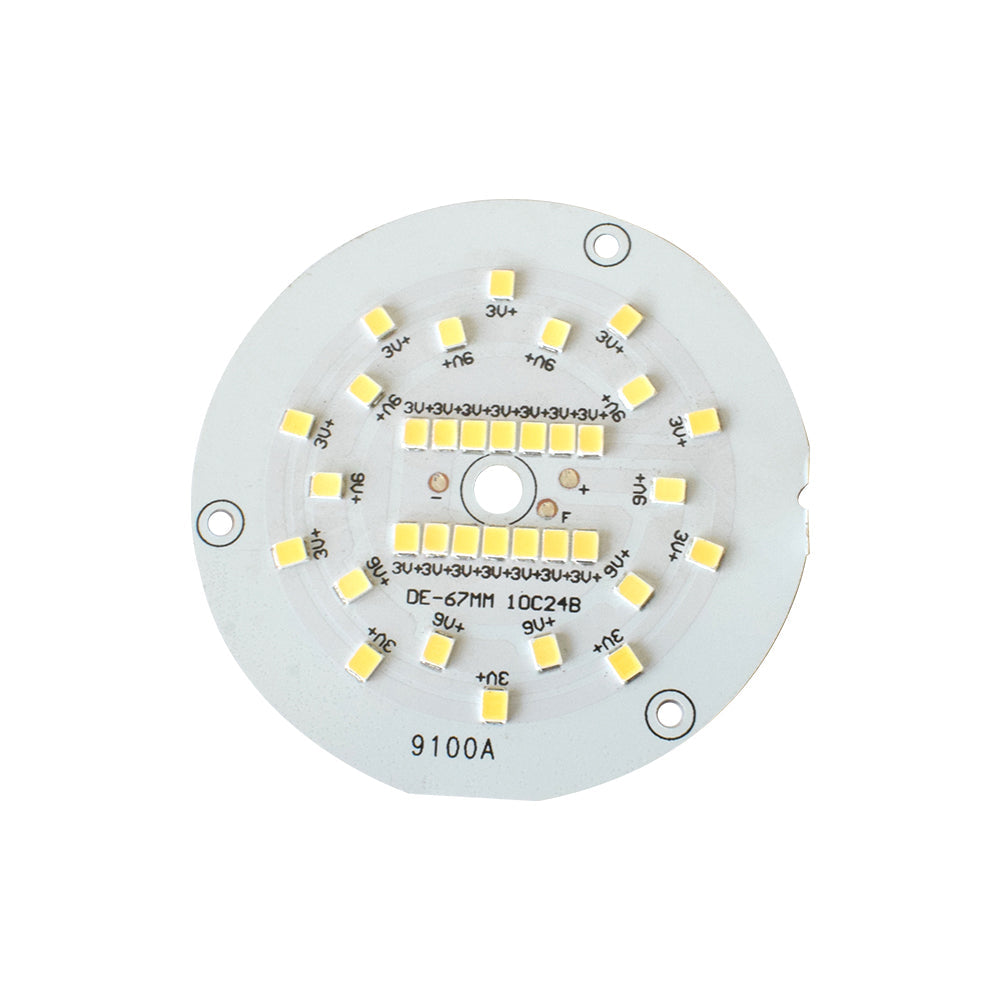

  • It has total 35 LED
Specification:
Type Inverter LED Bulb PCB LED Driver
Connection Point N,L and -,+
Input Voltage 100-305V
Output Current  300mA
Power 10W
Driver's Diameter 46mm
Bulb LED Diameter 67mm
Inner Diameter of Driver 20mm
Small holes Diameter 3.0mm
Large Holes Diameter 5mm
Output Voltage 40-60V
Country of Origin China
