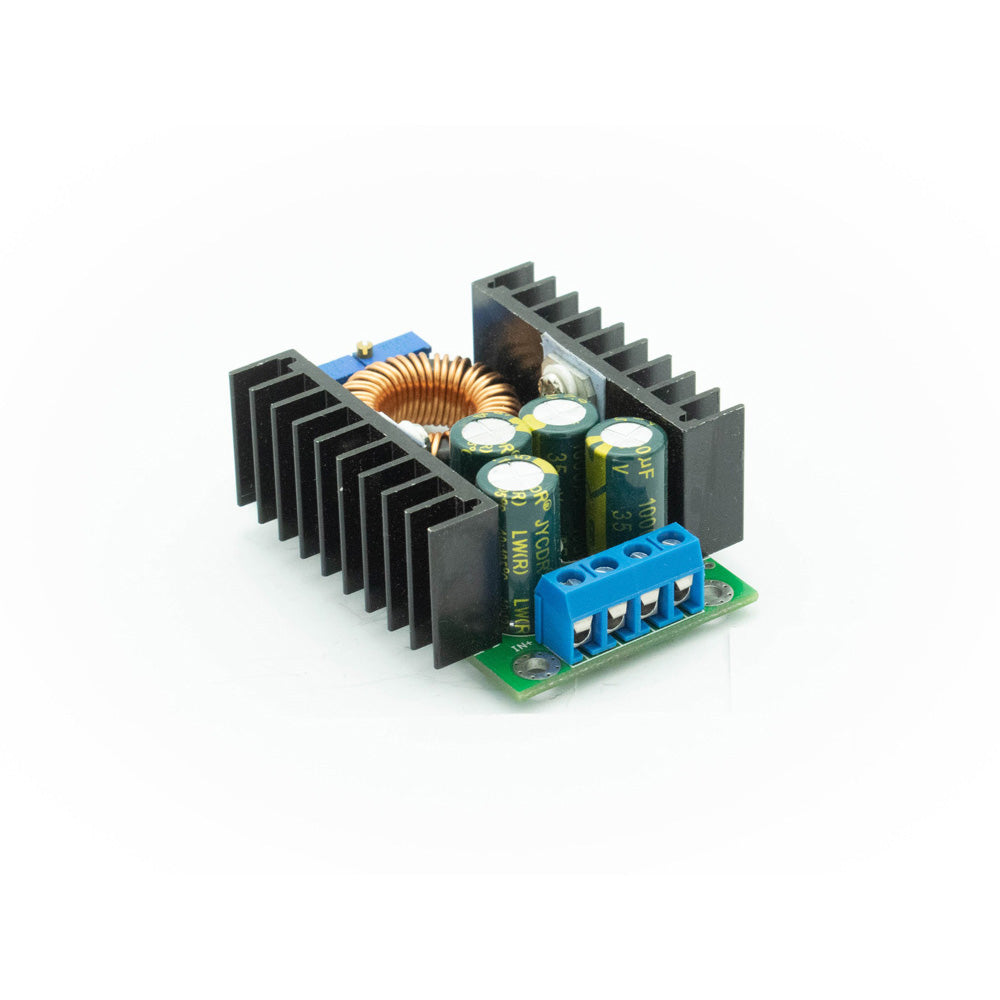

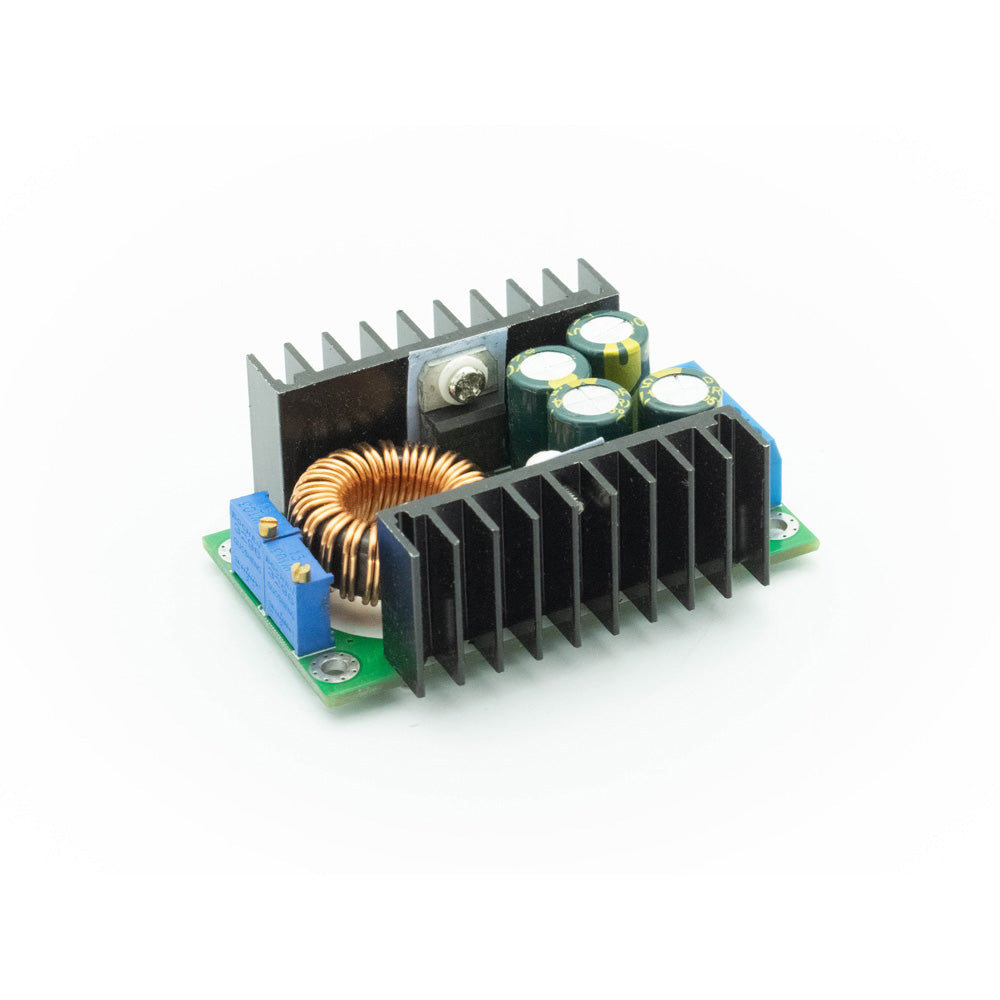

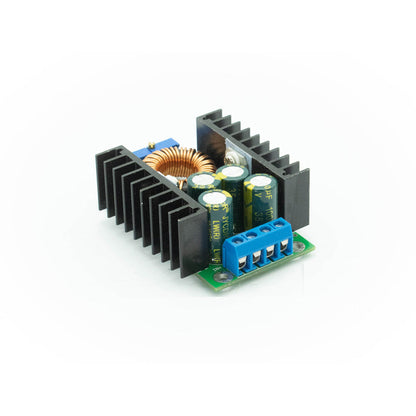

10A DC-DC Step-Down Buck Adjustable Converter
10A DC-DC Step-Down Buck Adjustable Converter
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The 10A DC-DC Step-down Adjustable Constant Voltage Module can provide output voltage ranges from 1.5V to 35V. The module has a wide current output range of up to 10 A. With a heat sink installed, it is possible to run a high-power application continuously (provided that for continuous high power output you need to use a cooling fan on the heat sink). The Module is constructed from a dedicated benchmark IC and a high-precision current sensing resistor, resulting in a more stable constant current (when 20°C to 100°C constant current 1A, temperature drift less than 1%), making it especially well-suited for LED driver applications. The module's output current can be increased to 10A. (for continuous use it is recommended up to 8A with an additional cooling fan). To enhance the stabilization in output voltage has four high-frequency capacitance which gives lower output ripple. Double heat sink design provides easy and fast heat dissipation. MOS Schottky diode independent heat sink, which heat dissipation is good, and won’t affect each other. Also using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever. For high accuracy voltage and current regulation and good stability, the module features 3296 multiturn potentiometers onboard. Because the voltage and current can be adjusted, it can be used for a variety of applications including battery charging, LED driver power supply, vehicle power supply, and so on.
Applications:
- High-power LED driver.
- Lithium battery(or lead accumulator) charge.
- Vehicle-mounted power supply.
- Low voltage system power supply.
- 6V, 12V, 14V, 24V battery charge.
- On-board laptop power supply.
- regulated power supply.
- Low voltage power supply system.
- Scope: High-power LED constant current driver, rechargeable lithium batteries 4V, 6V, 12V, 14V, 24V battery charging; nickel-cadmium nickel-metal hydride batteries (battery) charging, solar panels, wind generators.
- Output voltage: continuously adjustable (1.25-35V) (applied to the input voltage is higher than the output voltage applications can boost).
- Turn lights Current: current value * (0.1), turn the lamp current and constant value linkage, such as the constant value of 3A.
- Turn the lamp current is set to a constant current of 0.1 times (0.1 x 3A = 0.3A), when the constant 2A, when adjusted to the current value, then turn the lamp current constant current of 0.1 times (0.1 x 2A = 0.2A).
- This version is a fixed 0.1 times (actually turn the lamp current value is probably not very accurate) is full of instructions for charging.
- Minimum pressure: 1V.
- Output Ripple: about the ripple 50mV (without noise) 20M bandwidth (for reference) Input 24V Output 12V 5A measured.
- Operating temperature: -40 ℃ to + 85 ℃ (please note the actual use of the power tube temperature, the temperature is too high, please enhance heat dissipation).
Specification
| Input Supply Voltage | 7~40V |
| Output Voltage | 1.25~35V |
| Max. Output Current | 10A |
| Conversion Efficiency | 95% |
| Operating Frequency | 300KHz |
| No-Load Current | 20mA |
| Load Regulation | ±1% |
| Voltage Regulation | ±1% |
| Size | 65x47.5x23.5mm |
| Country of Origin | China |
