10 Inch 24V 350W Drum Brake With Tire

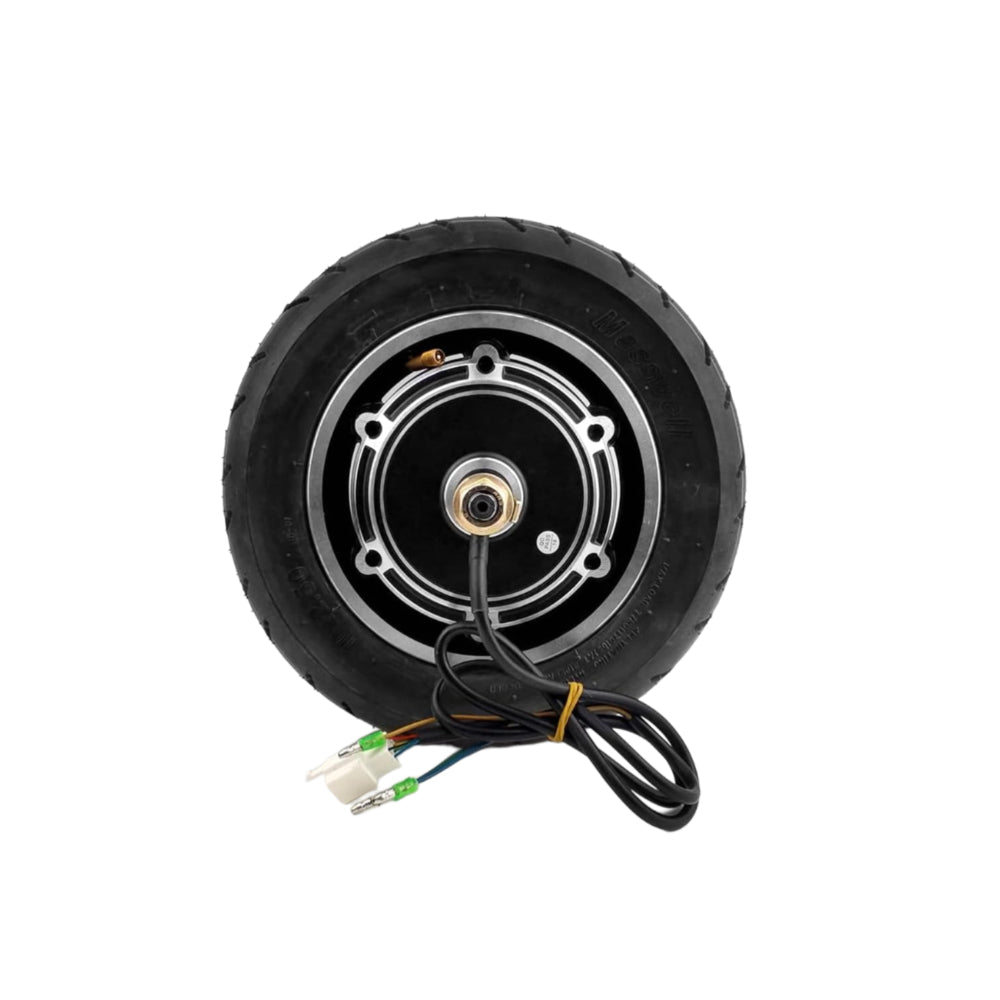

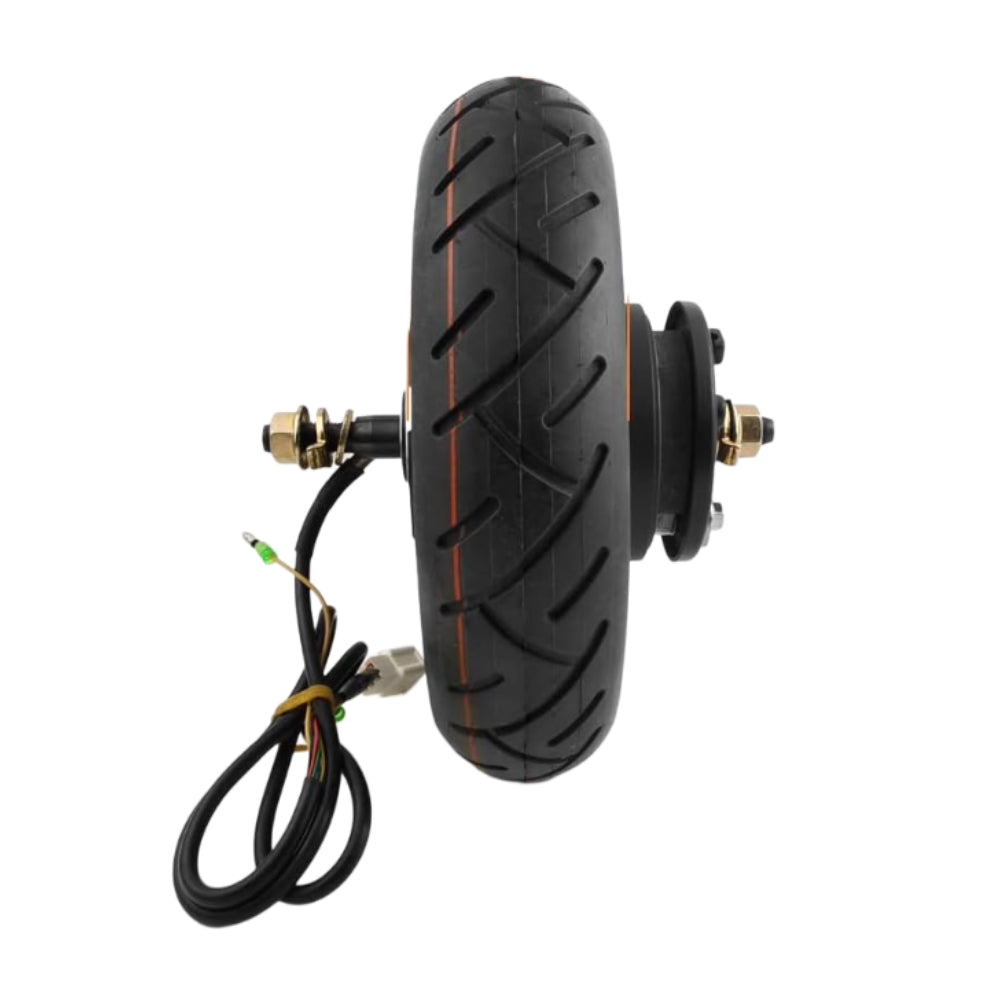

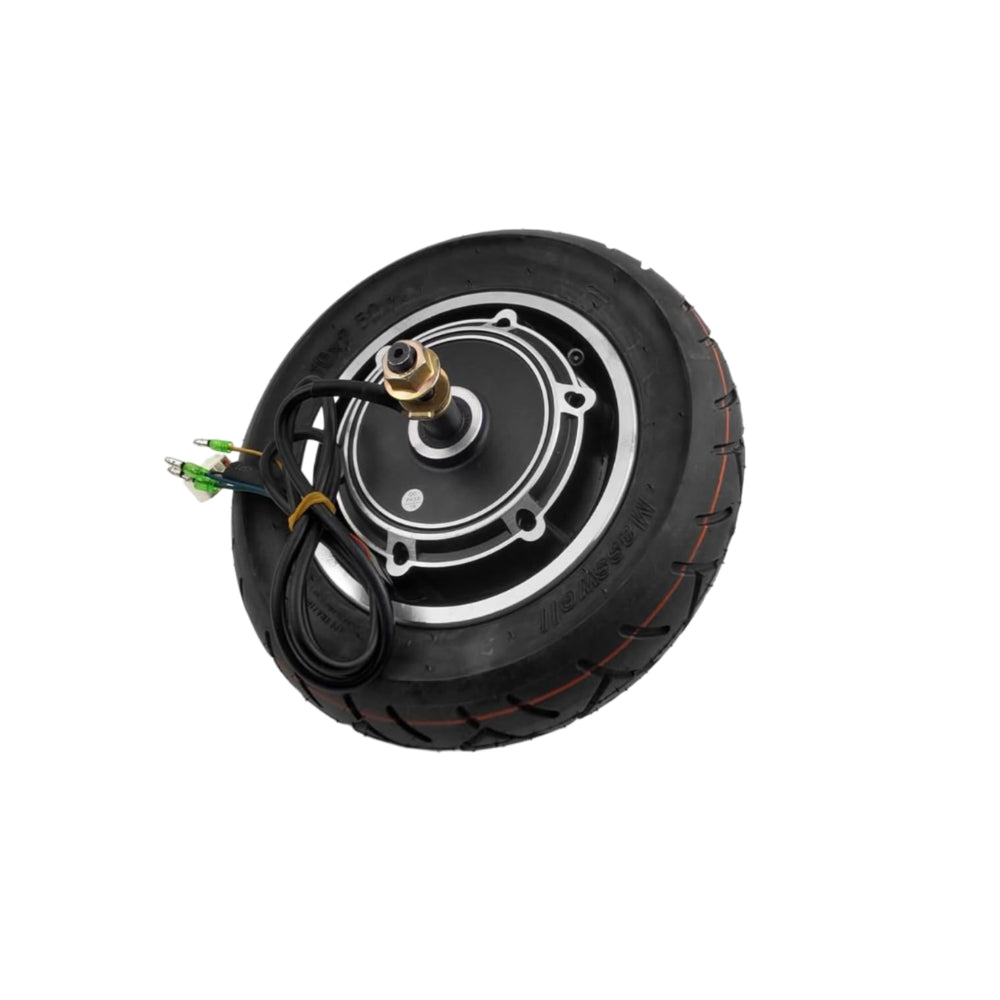

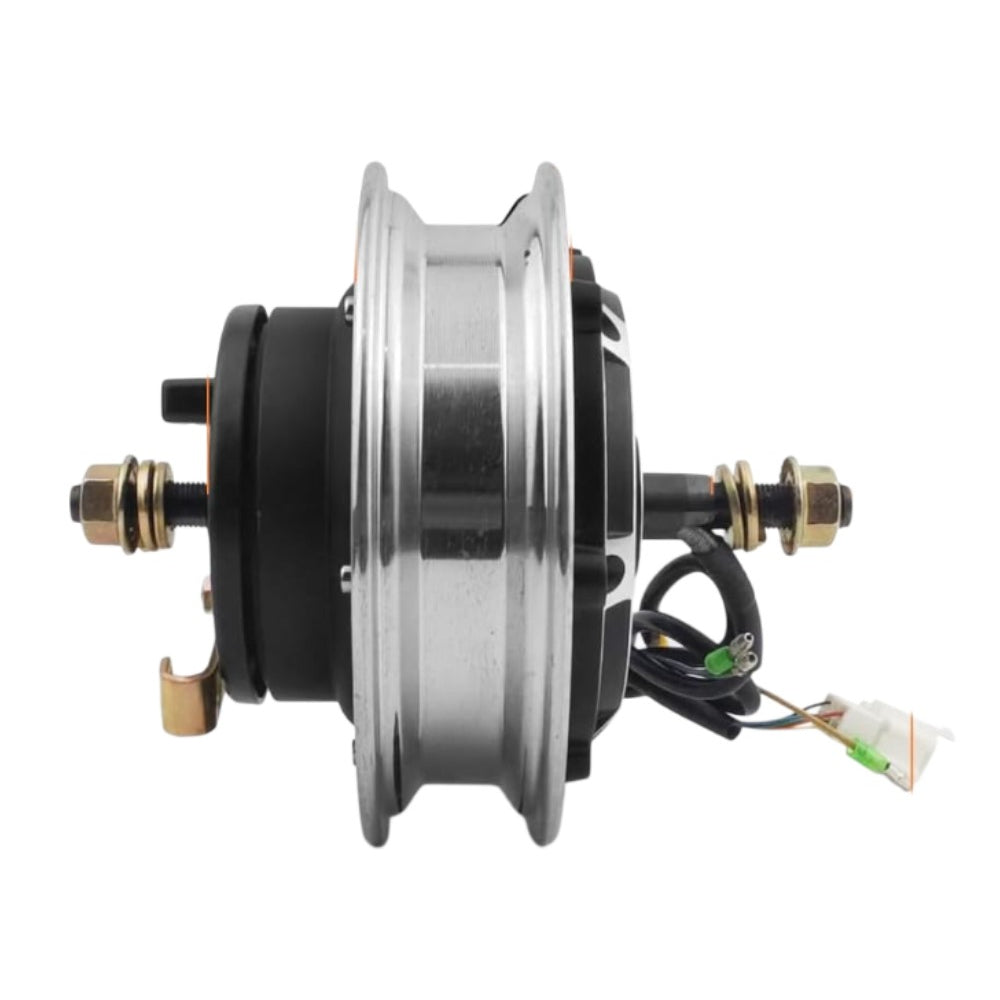

This is a 10-inch, 24V, 350W Hub Motor with an integrated drum brake and tyre, designed for electric bicycles, scooters, motorcycles, and other personal transportation projects. Operating at 24V with a power output of 350W, this motor offers reliable and efficient performance, making it ideal for a wide range of applications. The 10-inch wheel size ensures a compact and versatile fit, while the included durable tyre is ready for direct installation. The integrated drum brake enhances safety by providing effective and reliable stopping power. Commonly found on affordable E-bikes, this hub motor can be easily installed on the front or rear wheel, making it a practical choice for DIY E-bike conversion kits and vehicle upgrades. Its cost-effective and user-friendly design makes it a popular solution for electric mobility projects.

Technical Details

  • Rated Voltage: 24V
  • Rated Power: 350W
  • Peak Power: 420W
  • Rated Current: 15A
  • Peak Current: 19A
  • RPM: 550
  • Tyre: 10 x 2.50
  • Overall Diameter (With Tyre): 10 inch (25 cm)
  • Loading Capacity: 90-100 kg on a straight surface
  • Brake Type: Drum
  • Speed: 800 RPM (Adjustable 400-1000 RPM)
  • Motor Efficiency: >83%
  • Open File: 95mm
  • Wire length: Aprox 650mm

Features

  • Powerful 350W motor with 420W peak output
  • Compact 10-inch tire (10x2.50) for smooth performance
  • Supports up to 100 kg on flat surfaces
  • Reliable drum brake for enhanced safety
  • Adjustable speed: 400-1000 RPM (800 RPM default)
  • High energy efficiency: >83%
  • Optimized for 24V systems with low power consumption
  • Compact 95mm open file for easy mounting

Applications :

  • 10 Inch 24V 350W Drum Brake With Tire: Suitable for compact electric vehicles and mobility solutions.
  • Electric Scooters: Ensures reliable braking for 24V-powered scooters.
  • Electric Bikes: Ideal for smooth and consistent braking in smaller e-bikes.
  • Mobility Scooters: Used in personal mobility devices for enhanced safety.
  • Lightweight Electric Vehicles: Provides effective braking for compact EVs and carts.
  • Delivery Robots: Ensures precise control and braking in automated delivery systems.
  • Recreational Vehicles: Suitable for small electric recreational vehicles and personal transporters.

Physical Attributes

  • Weight (g)m: 3575
  • Diameter with tire: 254mm
  • Material: Aluminum
  • Paint: Matte Black
  • Wire length: Aprox 650mm

Package Includes

  • 1 x 10 Inch 24V 350W Drum Brake With Tire
