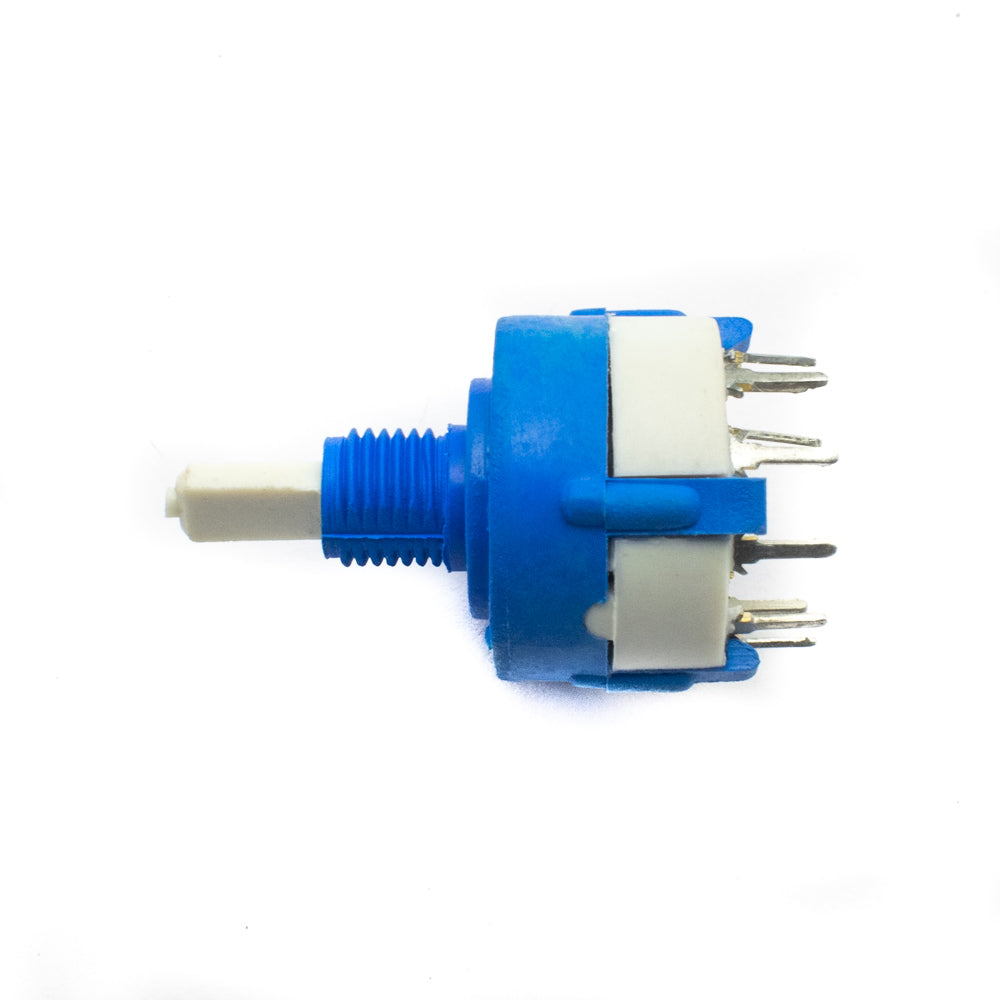

1 Pole 7 Positions Rotary Switch Small

1 Pole 7 Positions Rotary Switch Small

First Come First Serve Offer (T&C Apply )

12.00
0.00 12.00
Sale Sold out
Shipping calculated at checkout.
Rotary switches rotate in a circle and can come to a halt in a variety of positions. This rotary switch is used to control several electrical circuits with a single switch and may be configured to have many contacts at the same time on a single switch position.

A rotary switch features a rotating spindle on which the rotors are attached, with each rotor having an arm protruding outward that can make contact with a terminal when the switch is in a certain position. A detent mechanism positions the rotary switch, causing it to "click" into place and stay there until enough effort is applied to move it, preventing the switch from moving freely and placing it in the incorrect position. This rotary switch has a single pole and three positions, which means it may be linked to three distinct electrical circuits.


Features

  • Turn function to ensure secured switching activities
  • 7 switching position
Specifications
Pole Single
Positions(steps)  7
Action Type Lock Type
Shaft Type D-type
Shaft Length x Breadth 7.4mm x 4mm
Rotary Switch Dimensions(LxB) 33mm x 29mm
Country of Origin China
