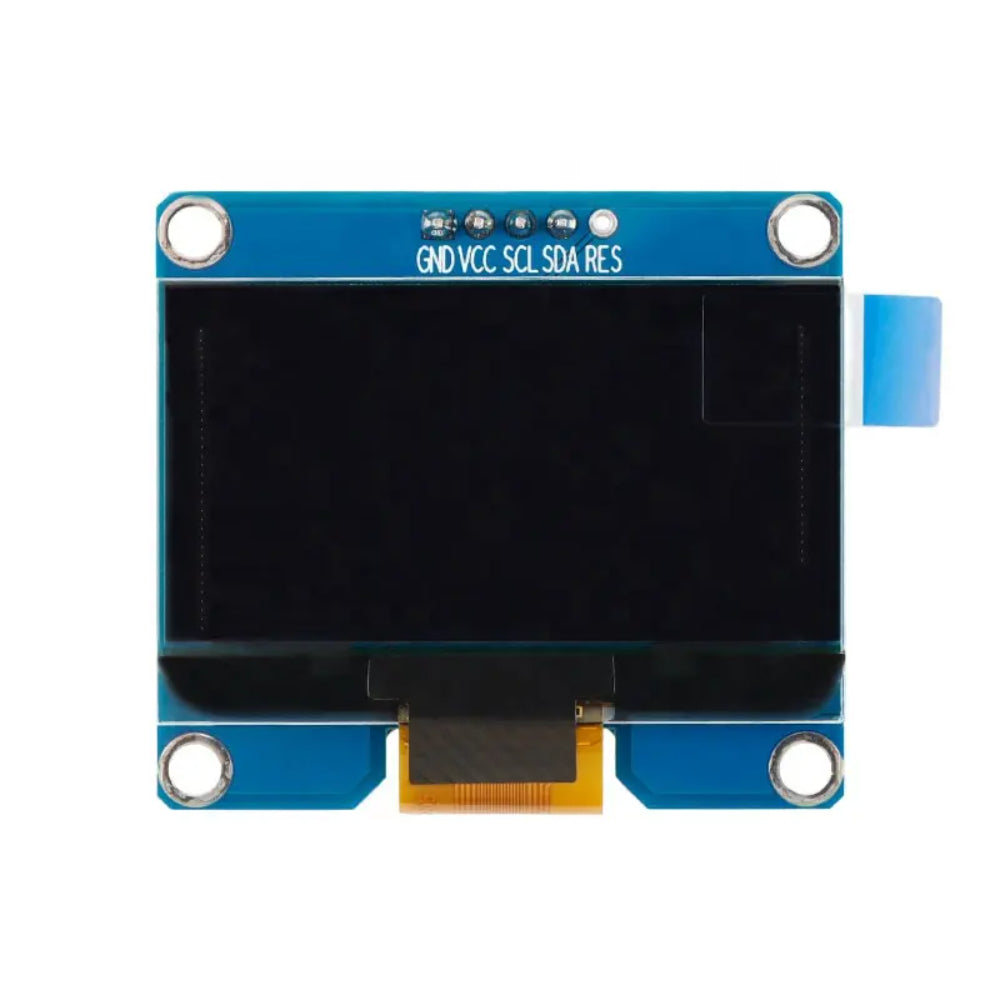

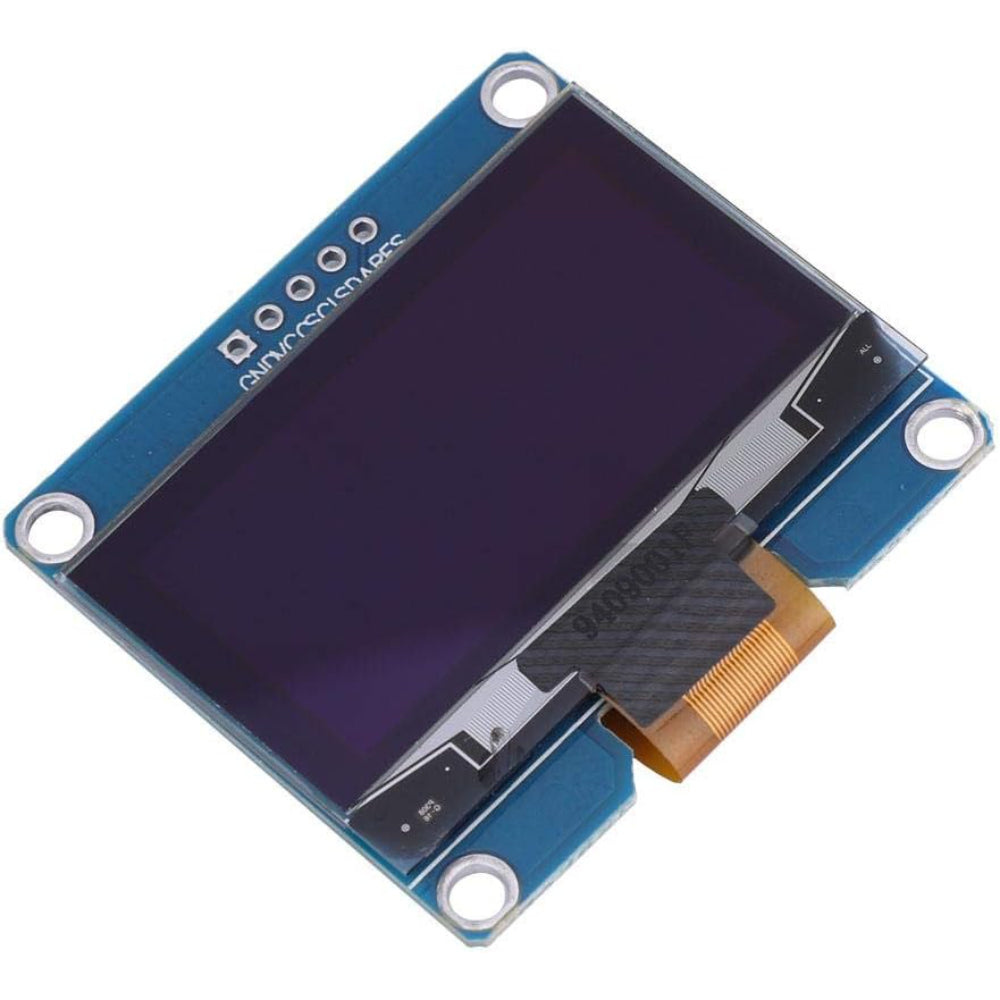

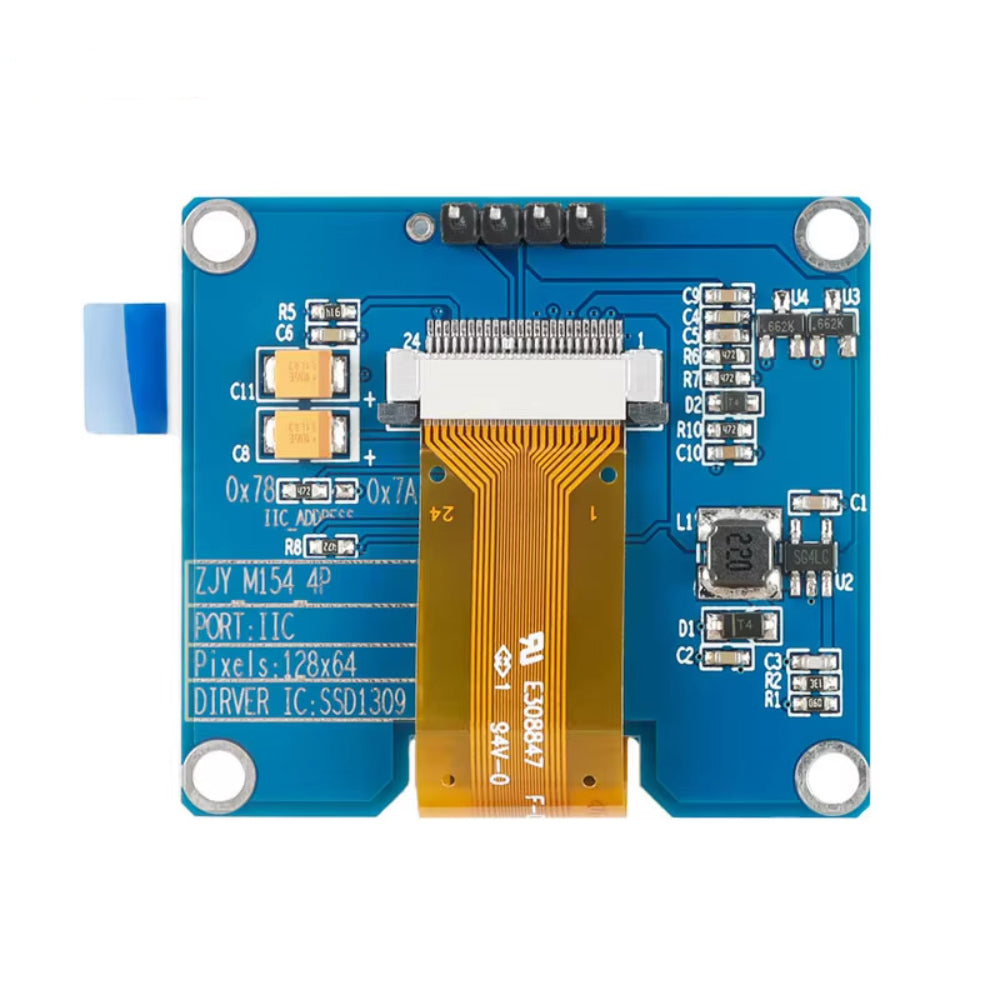

1.54in Screen 128x64 LCD Module 5Pin SSD1309 Display Module with I2C Interface Blue

1.54in Screen 128x64 LCD Module 5Pin SSD1309 Display Module with I2C Interface Blue

First Come First Serve Offer (T&C Apply )

783.02
999.00 783.02
Sale Sold out
Shipping calculated at checkout.
The 1.54-inch LCD Display Module offers a 128x64-pixel resolution within a compact form factor, making it ideal for a range of applications that demand clear graphical output in limited space. Driven by the SSD1309 IC, this module provides efficient and reliable graphic rendering, compatible with multiple microcontroller platforms. The integrated I2C interface simplifies connectivity and minimizes wiring, making it suitable for both DIY enthusiasts and professional developers working on embedded systems.

Key Features:

High-Contrast Display: Monochrome for clear text and icons.

Compact Size: Ideal for space-constrained designs.

Versatile I2C Interface: Minimal wiring is needed for control.

Easy Mounting: Standard holes for secure attachment.

Supported by SSD1309 Libraries: Compatible with popular microcontrollers like Arduino, Raspberry Pi, and ESP8266.

Applications:

Embedded Systems and Microcontroller Projects: Perfect for displaying information or graphics in small DIY projects with platforms like Arduino, Raspberry Pi, ESP8266, or STM32.

Wearable Technology: Its compact and low-power nature makes it ideal for wearable devices, such as smartwatches or fitness trackers, where space and battery efficiency are critical.

Portable and Handheld Devices: Suitable for small instruments or measurement tools that require a display to show readings or status indicators.

Home Automation Panels: Useful in IoT and smart home devices for displaying data such as temperature, humidity, or device status.

Connection:

Backlight: None (monochrome LCD does not require a backlight).

Operating Temperature: Typically -20°C to 70°C.

Storage Temperature: Typically -30°C to 80°C.

Weight: Lightweight for portable applications

Viewing Angle: Wide viewing angle for clear visibility

1.54" OLED display Technical Details

  • Display Type: Monochrome LCD Graphic Display
  • Screen Size: 1.54 inches (diagonal)
  • Resolution: 128x64 pixels
  • Driver IC: SSD1309, compatible with common microcontroller libraries
  • Interface: I2C (5-pin: VCC, GND, SDA, SCL, RES)
  • Operating Voltage: 3.3V to 5V
  • Current Consumption: Low-power consumption suitable for battery-operated devices

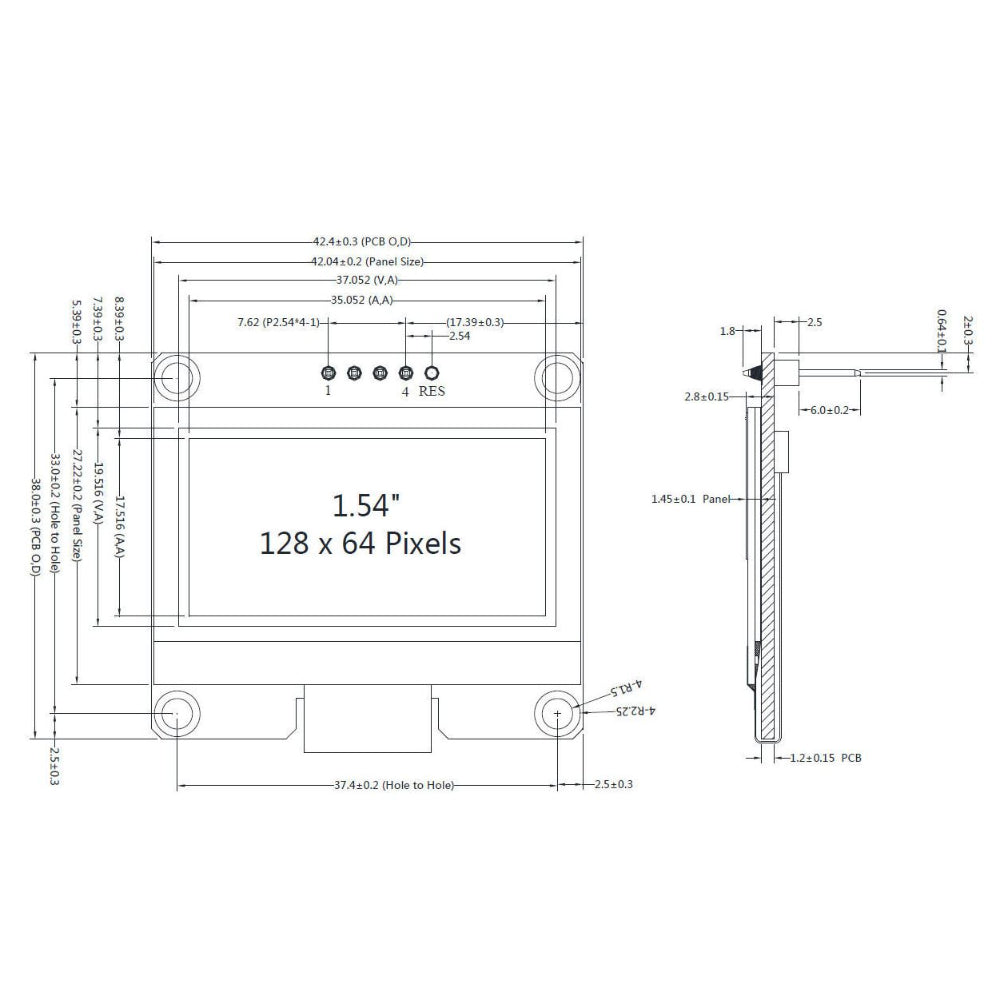

  • PCB Dimensions:
  • Outer Dimensions: 42.4mm x 42.4mm
  • Panel Size (W): 42.04mm
  • Viewing Area (VA): 37.052mm
  • Active Area (AA): 35.052mm
  • PCB Thickness: 1.2mm ± 0.15mm
  • Panel Thickness: 1.45mm ± 0.1mm
  • Mounting Holes:
  • Hole Diameter: 2.5mm
  • Hole Spacing (Center-to-Center): 37.4mm (horizontal)
  • Pin Spacing (I2C Header): 2.54mm
  • Connector Type: Flexible Flat Cable (FFC) or pin headers for easy connection
  • Backlight: None (monochrome LCD does not require a backlight)
  • Operating Temperature: Typically -20°C to 70°C
  • Storage Temperature: Typically -30°C to 80°C
  • Weight: Lightweight for portable applications
  • Color of PCB: Blue
  • Viewing Angle: Wide viewing angle for clear visibility

Physical Attributes

  • Module size: 47mm (L) * 43mm (W) * 13.8Maxmm (T)

Package Includes

  • 1 x 1.54in Screen 128x64 LCD Module 5Pin SSD1309 Display Module with I2C Interface Blue
