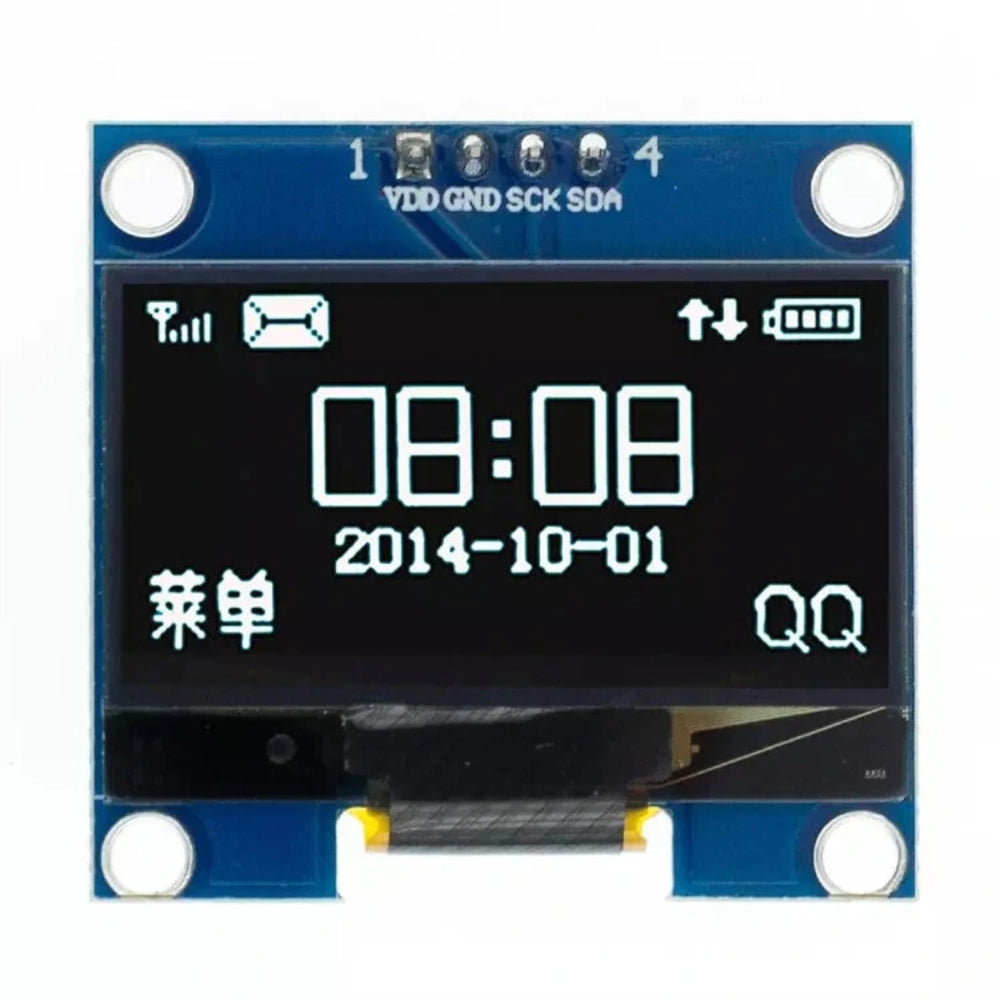

1.3 Inch I2C IIC 4 pin OLED Display Module with VCC GND-White

1.3 Inch I2C IIC 4 pin OLED Display Module with VCC GND-White

First Come First Serve Offer (T&C Apply )

322.42
499.00 322.42
Sale Sold out
Shipping calculated at checkout.
The 1.3-inch White OLED display module features a resolution of 128×64 pixels and can be easily interfaced with any microcontroller using SPI/IIC protocols. This module comes with a display board, a display, and a 6-pin male header pre-soldered to the board for easy integration. OLED (Organic Light-Emitting Diode) technology is a self-light-emitting technology, meaning it does not require a backlight, unlike traditional LCD displays. The display utilizes organic materials arranged between a cathode and anode, creating a thin, multi-layered film. When an electric voltage is applied, holes and electrons are injected into the Emission Layer (EML), where they combine to form excitons, resulting in electroluminescence. The quality of OLED components depends on the materials used for the transfer, emission layers, and electrodes. This technology offers significant advantages for next-generation flat-panel displays, providing better brightness, contrast, and power efficiency compared to LCD.

Features:

Requires Only 2 I/O Ports: Simplifies the wiring and reduces the number of connections needed for control.

Resolution: 128×48 pixels, providing a clear and crisp display.

Color: White, offering high contrast for easy readability.

Fully Compatible with Arduino: Seamlessly integrates with Arduino boards for easy setup and programming.

Working Temperature: -30°C ~ 70°C, making it suitable for a wide range of environments.

Factory Configured for SPI Protocol: Comes pre-configured for SPI protocol, with the option to easily switch to IIC for different interface needs.

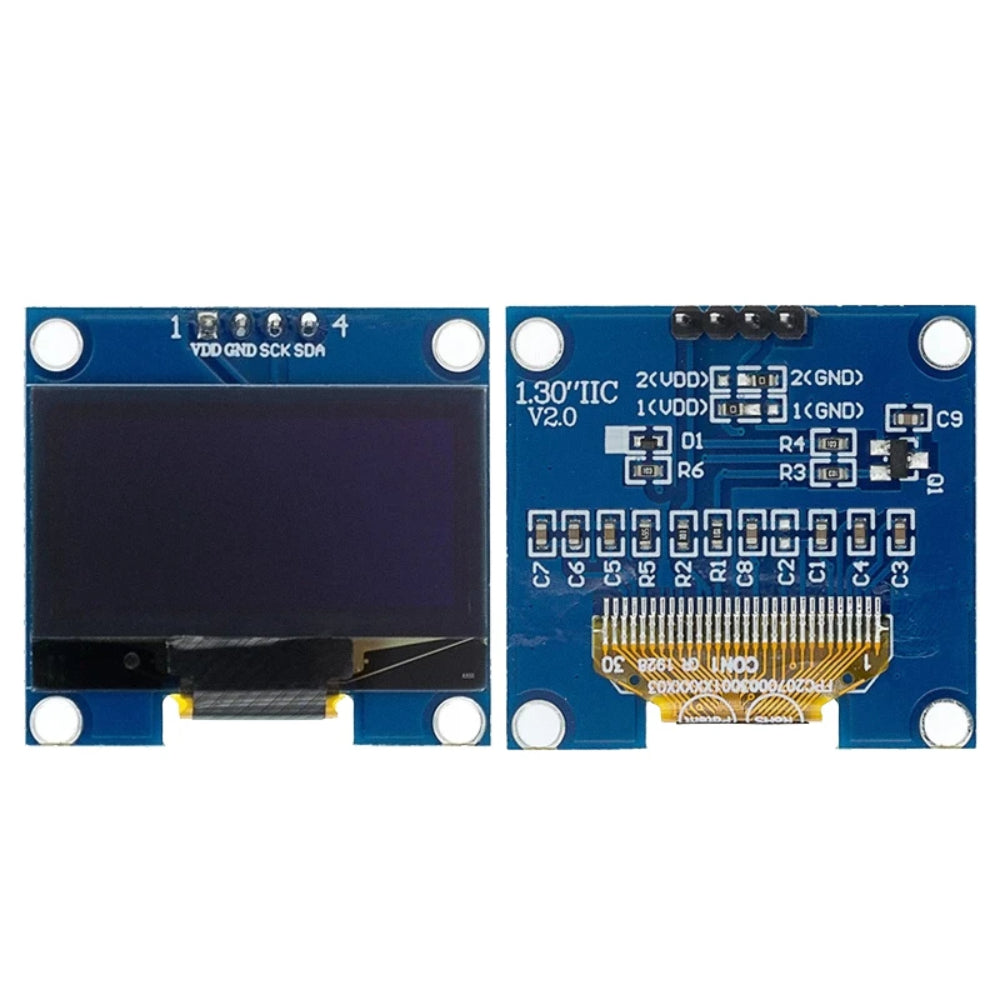

Pin Details

  • GND (power ground)
  • VCC (positive power supply)
  • SCL (clock line)
  • SDA (data line)

Technical Details

  • Model Type: OLED Display Module
  • Display Size (Inch): 1.3
  • Display Resolution: 128 × 64
  • Operating Voltage (V): 3.3V-5V DC
  • Interface Type: IIC interface
  • Display Color: White
  • Driver IC: SH1106

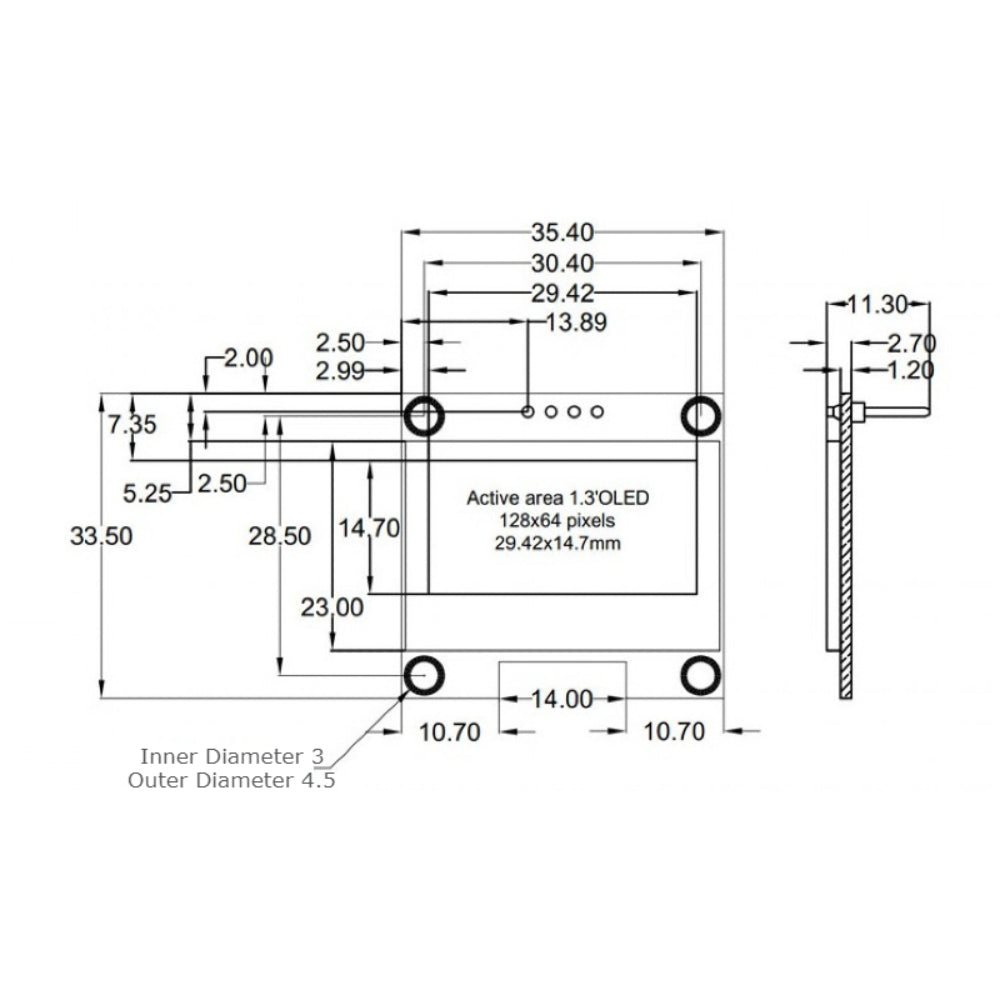

  • Display Area: 29.42 × 14.7mm
  • Operating Temperature (°C): -40° to 70° C
  • Length (mm): 35.5
  • Width (mm): 33.5
  • Height (mm): 3
  • Weight (g): 6

Applications:

  • Fitness trackers, smartwatches, and other wearable technology
  • IoT initiatives to show status updates and visualize sensor data
  • Tools for diagnosis, testers, and portable meters
  • DIY electronics projects and prototypes for designing unique user interfaces
  • Medical equipment such as blood glucose meters, patient monitoring systems, and pulse oximeters
  • Other electrical devices

Physical Attributes of oled display module

  • Pixel Color: White

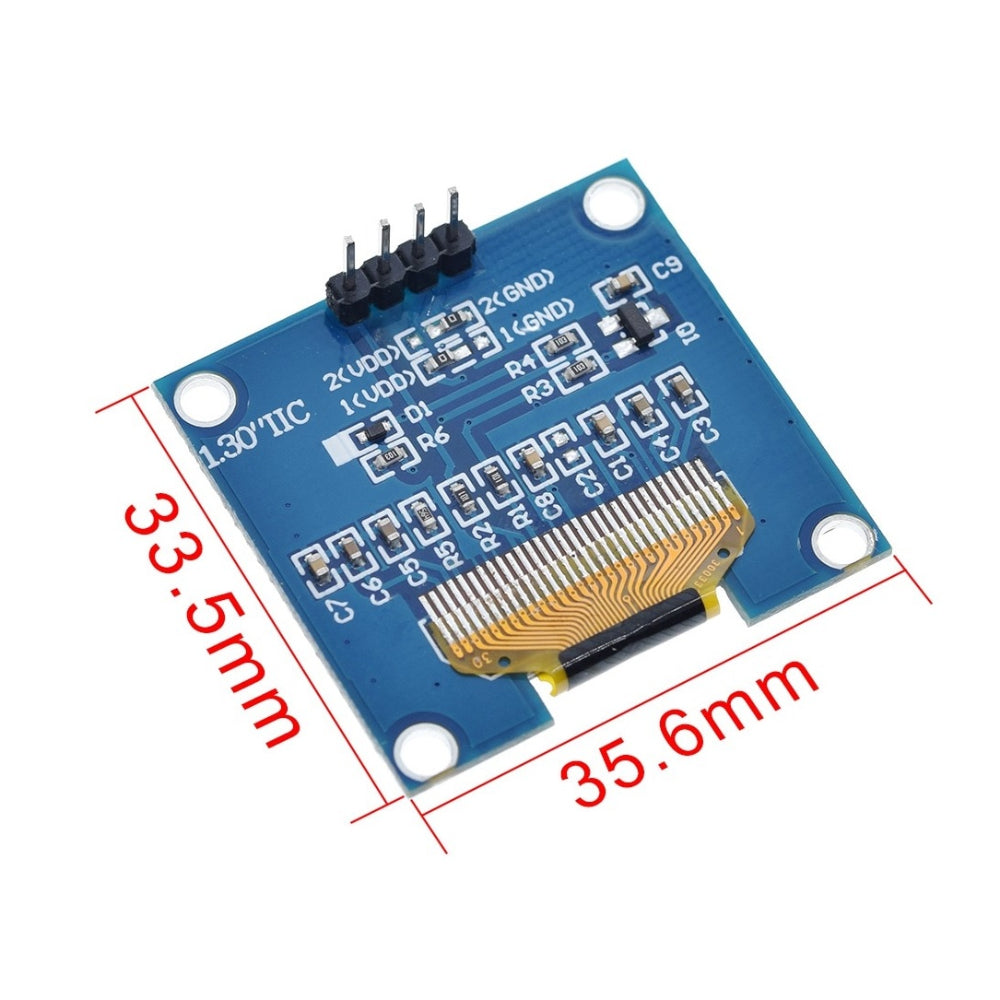

  • Length × Width × Height(mm) : 35.5 × 33.5 × 3
  • Weight (gm): 6

Package Includes

  • 1 x 1.3 Inch I2C IIC 4 pin OLED Display Module with VCC GND-White
