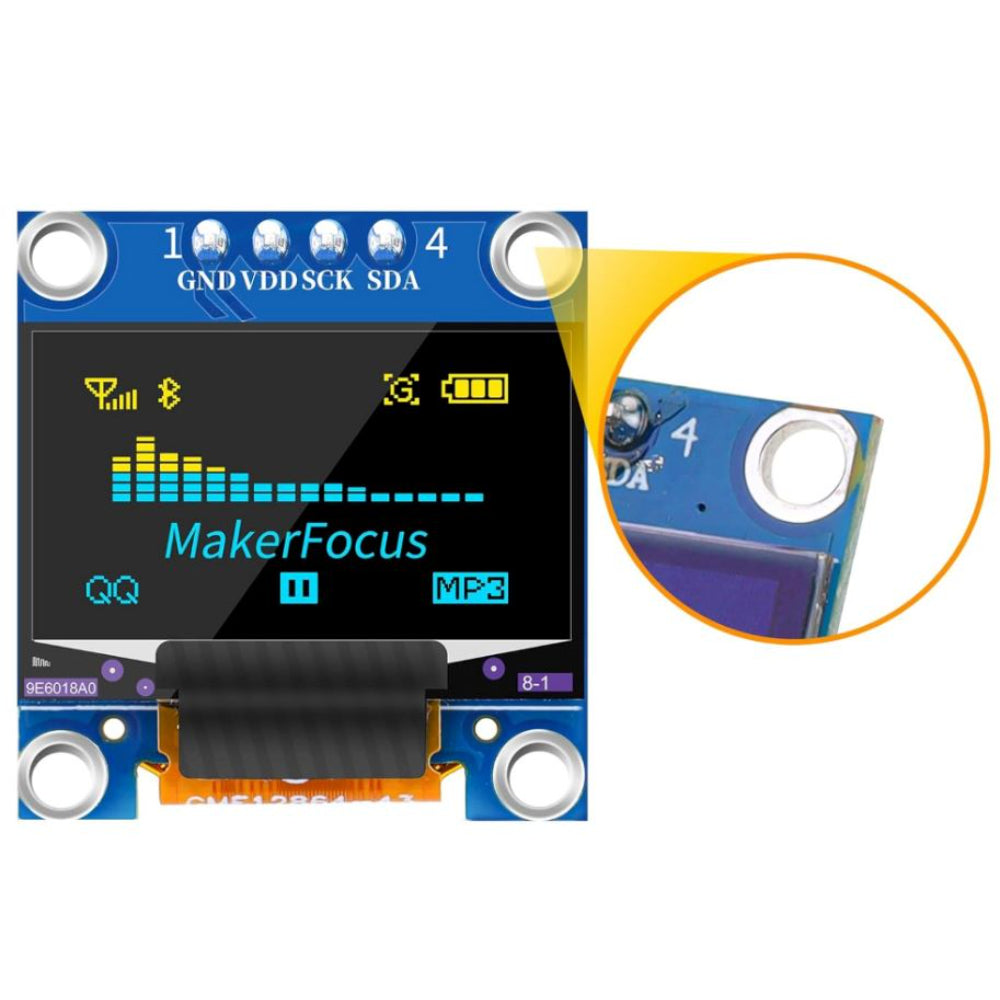

0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow

0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow

First Come First Serve Offer (T&C Apply )

169.00
249.00 169.00
Sale Sold out
Shipping calculated at checkout.
The 0.96-inch I2C/IIC OLED Display Module is a high-performance, monochrome 128×64 dot matrix display that utilizes OLED (Organic Light-Emitting Diode) technology. Unlike traditional LCDs, OLED displays are self-light-emitting, eliminating the need for a backlight, which results in a thinner profile, higher contrast ratio, and lower power consumption. This display module operates using I2C or SPI communication protocols, making it compatible with a wide range of microcontrollers. It offers excellent brightness, a wide viewing angle, and a wide operating temperature range, making it suitable for various applications. The module is pre-soldered with a 4-pin male header for easy interfacing, and its slim design makes it ideal for space-constrained projects.

Features:

Super High Brightness (Adjustable): Provides exceptionally bright visuals, with adjustable brightness to suit different environments.

Super High Contrast (Adjustable): High contrast for clear and sharp text and images, with adjustable settings for better customization.

Embedded Driver/Controller: Includes a built-in driver/controller for easy integration and operation, reducing the need for additional hardware.

Display Size: Compact 0.96-inch screen, ideal for small-scale displays and portable projects.

Resolution: 128 x 64 resolution, ensuring crisp, clear visuals for text and graphics.

Interface Modes: Supports I2C/IIC interface modes for easy communication with microcontrollers.

Working Voltage: Operates at a low voltage of 3.3V, making it power-efficient for battery-operated devices.

Control Chip: Powered by the SSD1306 control chip, known for its reliability and excellent performance in OLED displays.

Technical Details

  • Model Type: OLED Display Module
  • Display Size (Inch): 0.96
  • Display Resolution: 128 × 64
  • Color: Blue & Yellow
  • Display Area: 21.74 x 10.86 mm
  • Operating Voltage (V): 3.3-5V
  • Operating Temperature (°C): -40º ~ 70º Celsius
  • Interface: I2C IIC
  • Length (mm): 27.5
  • Width (mm): 25
  • Height (mm): 11
  • Weight (g): 2

Applications:

  • Compact displays for small embedded systems
  • Real-time data visualization in IoT projects
  • Low-power, portable electronics like handheld devices
  • Displaying sensor data in Arduino-based projects
  • Graphical interfaces for home automation systems
  • Small-scale gaming consoles or interactive devices
  • Wearable technology for fitness or health monitoring
  • Battery-operated projects requiring low energy consumption
  • Digital clocks or timers in compact devices
  • Portable diagnostic tools or equipment displays

Interface pin

  • VCC: 3.3 volts – 5 Volts
  • GND: Ground
  • SCL: Serial Clock
  • SDA: Serial Data

Physical Attributes of oled display module

  • Display Area: 21.74 x 10.86 mm
  • Length (mm): 27.5
  • Width (mm): 25
  • Height (mm): 11
  • Weight (g): 2

Outline Drawing

0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow

Package Includes

  • 1 x 0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow
