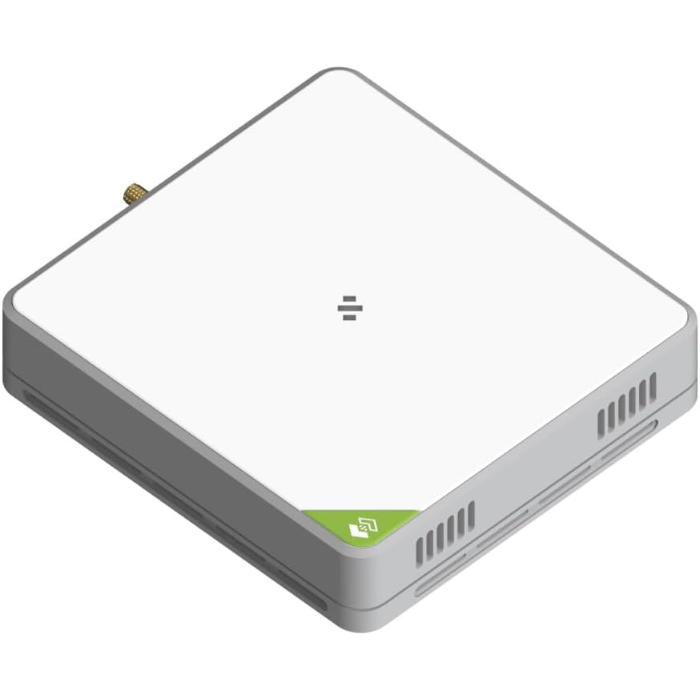

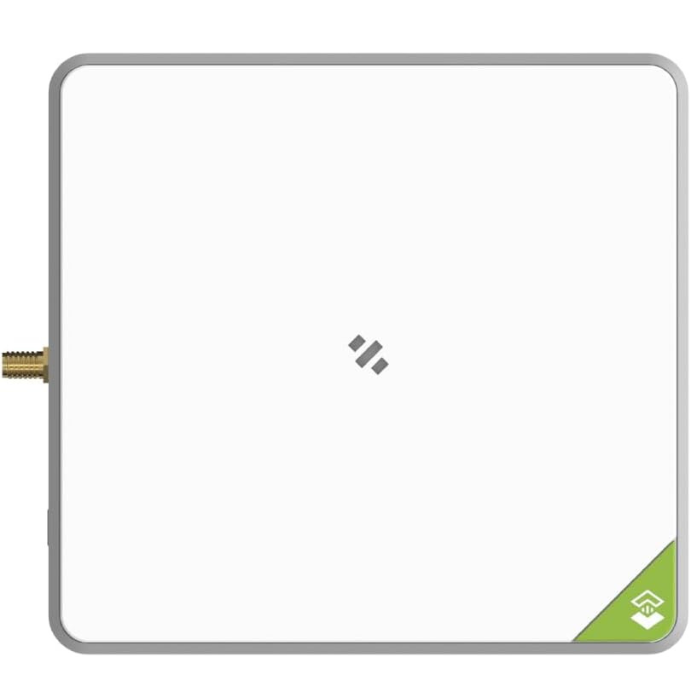

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
The SenseCAP M2 Multi-Platform LoRaWAN® Gateway from Seeed Studio is the ultimate solution for seamless IoT connectivity. Designed to support global LoRaWAN® frequency plans, this gateway ensures compatibility across diverse applications.
With built-in network server support, easy configuration, and Power-over-Ethernet capability, it guarantees operational excellence. The gateway provides extensive coverage, strong signal output, and professional management tools for a reliable and efficient LoRaWAN network.
The SenseCAP M2 Gateway boasts a mature hardware solution powered by MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular (optional), Wi-Fi, and Ethernet internet connections, offering versatile connectivity options.
The gateway's dimensions, 143.6x135x34mm (connector not included) and 150.6x135x34mm (connector included), ensure a compact and efficient device. Ideal for applications like smart agriculture, smart buildings, and environmental monitoring systems, this gateway is a vital component for creating LoRaWAN network solutions.
Its ease of setup, wide coverage, and compatibility with various network servers make it a must-have for IoT enthusiasts and professionals alike.
Note :
- The SenseCAP M2 Multi-Platform LoRaWAN® Gateway doesn't support the Helium network. It can not be connected with SenseCAP Hotspot APP and SenseCAP Dashboard.
- Please contact the SenseCAP MX Team on the Official SenseCAP MX Community Discord Channel for tech support.
Features:
- Support Multiple LoRaWAN® Network Servers: Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.
- Built-in LoRaWAN Network Server: Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
- Built-in SenseCAP Local Console for Configuration: Provides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
- Support Power-over-Ethernet (PoE): For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
- Wide-range Coverage and Strong Signal: Provides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
- Excellent and Stable Performance: The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular(optional)、Wi-Fi and Ethernet internet connection.
- Professional Management Tools and Cloud Services: Users could easily set up the gateway in a few simple steps via Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.
Applications:
- Smart Agriculture,
- Smart Buildings,
- Environmental Monitoring,
- Asset Tracking,
- Utility Management,
- Smart Cities,
- Industrial IoT,
- Remote Monitoring,
- Security,
- Healthcare.

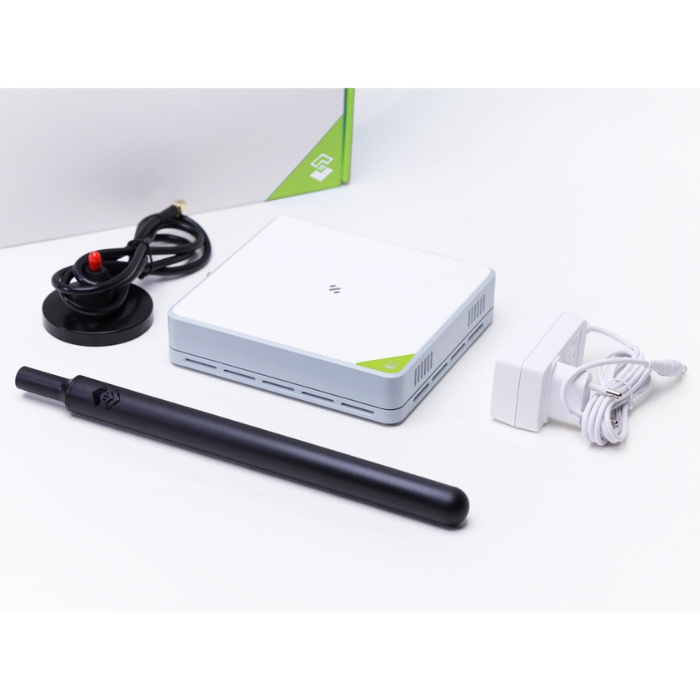

SenseCAP M2 Data Only LoRaWAN Gateway Unboxing and Onboarding
Package Includes:
- 1 x SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
Specifications:
|
Processor |
MT7628(MIPS24KEc@580MHz) |
|
RAM |
DDR2 128MB |
|
Flash |
32MB |
|
Long Range Gateway Chip |
SX1302 |
|
Channel |
8 |
|
LoRaWAN® Protocol |
V1.0.3 Class A/Class B/Class C |
|
Frequency Plan |
IN865/EU868/RU864/US915/AU915/KR920/AS923 |
|
Long Range Sensitivity |
-125dBm @125KHz/SF7 |
|
-139dBm @125KHz/SF12 |
|
|
Long Range TX Power |
Up to 26 dBm |
|
Antenna |

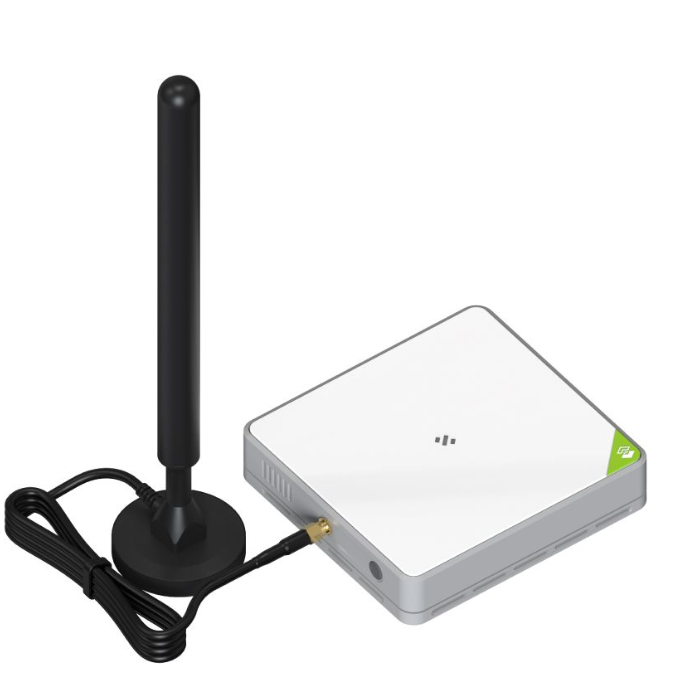

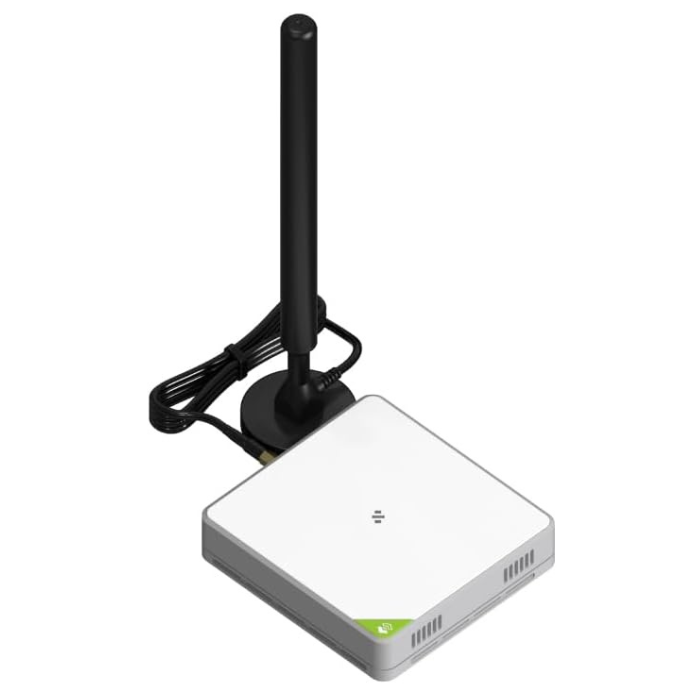

Long Range: 3dBi External Antenna with Base Wi-Fi: Internal Antenna |
|
Antenna Impedance |
50 Ohm |
|
Wi-Fi |
Support 2.4 GHz 802.11 b/g/n |
|
Ethernet |
1xRJ45 (10M / 100 M), PoE PD support |
|
Cellular(Optional) |
Another version is optional, coming soon |
|
Input Voltage |
DC 12V - 2A PoE (IEEE 802.3 af), 40V-57V DC |
|
Interfaces |
Ethernet RJ45 * 1 RP-SMA Female Antenna Connector * 1 Micro SD Card Slot (Future use) * 1 USB Type-C (Console) * 1 |
|
Management Software |
Web |
|
Dimension |
143.6x135x34mm (connector not included) 150.6x135x34mm (connector included) Package: 340*230*65mm |
|
Operating Temperature |
-20°C to 55°C |
|
Relative Humidity |
0% - 85% (non-condensing) |
