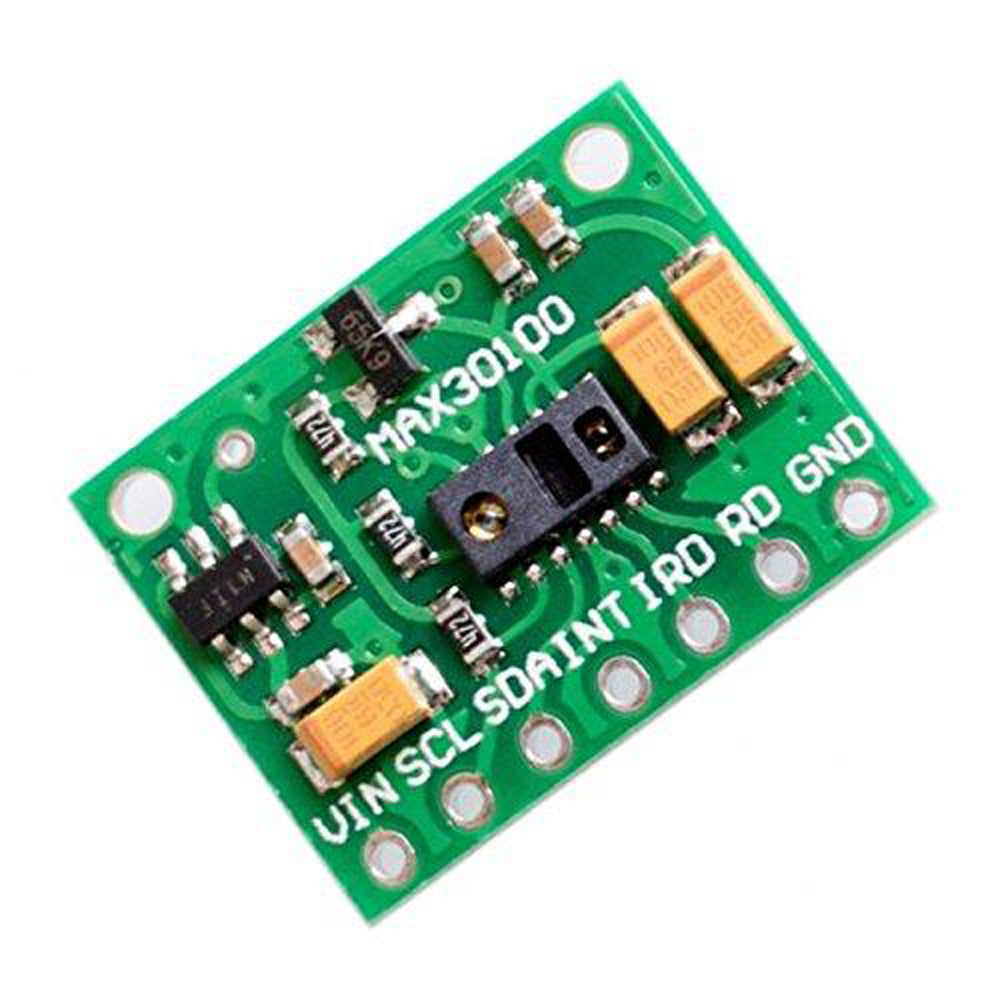

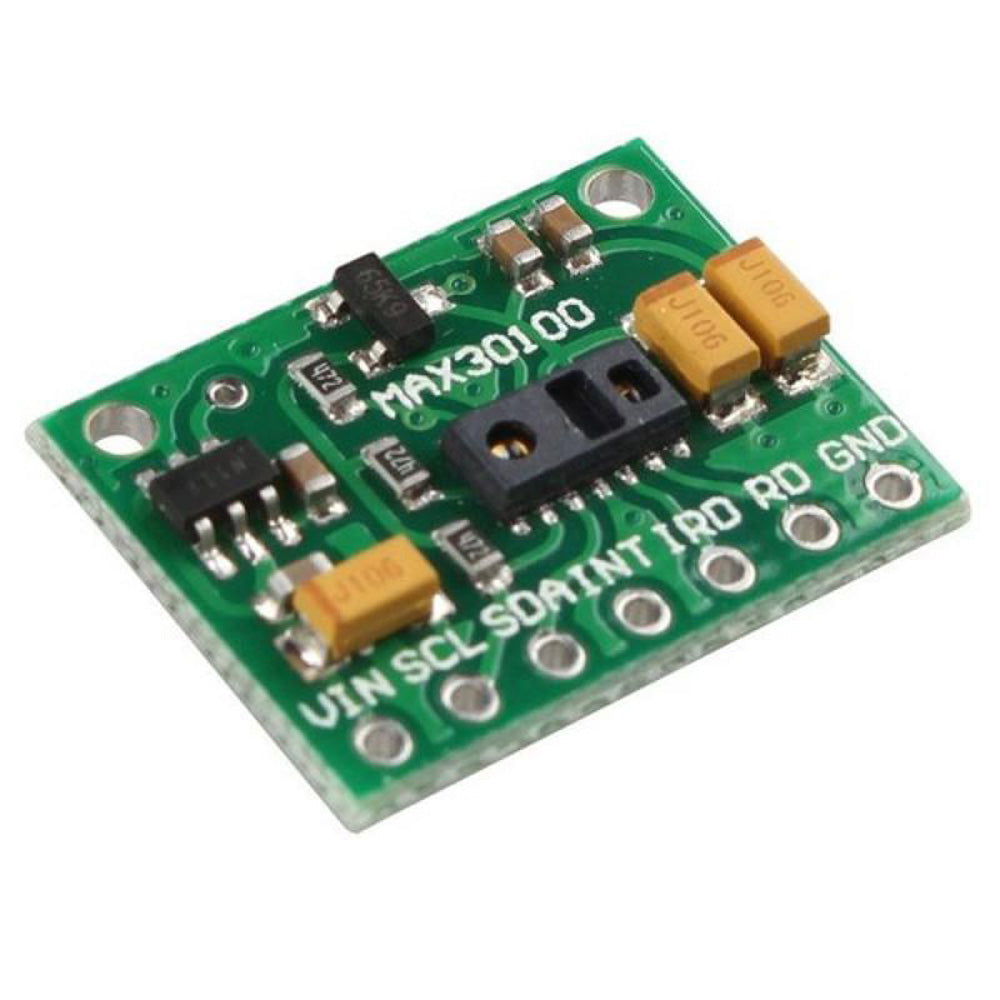

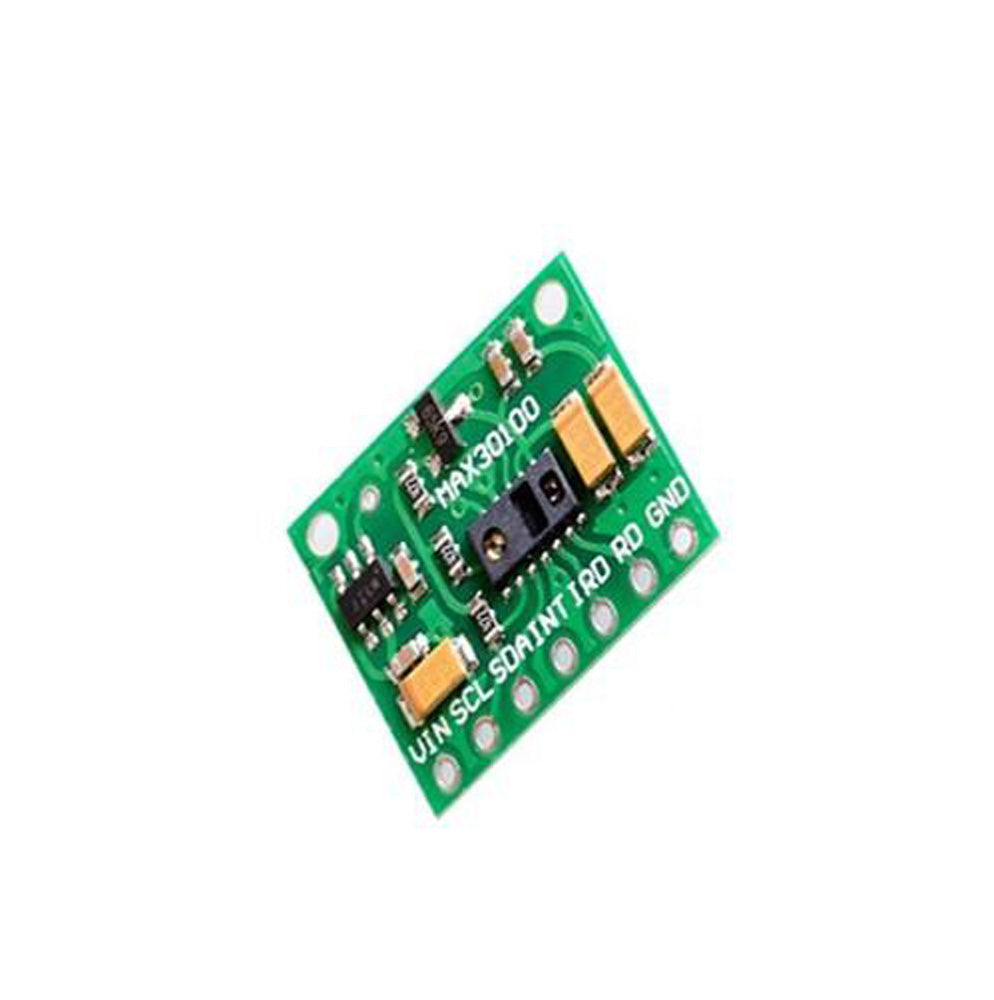

Max30100 Pulse Oximeter Heart Rate Sensor Module

Max30100 Pulse Oximeter Heart Rate Sensor Module

First Come First Serve Offer (T&C Apply )

76.00
0.00 76.00
Sale Sold out
Shipping calculated at checkout.

Heart Rate click carries Maxim’s MAX30100 integrated pulse oximetry and a heart-rate sensor. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED colour combination is optimized for reading the data through the tip of one’s finger. The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. A programmable INT pin is also available. This operates at a 3.3V power supply.

Features:

  1. Optical sensor: IR and red LED combined with a photodetector
  2. Measures absorbance of pulsing blood
  3. I2C interface plus INT pin
  4. 3.3V power supply complete pulse oximeter and heart rate sensor solution
  5. Ultra low power operation
  6. Ambient light cancellation high sample rate capability fast data output capability
  7. It is an integrated pulse oximetry and heart rate monitor sensor solution.
  8. Applications: Medical Monitoring Device, Fitness Assistant Devices, Wearable Devices
 Specifications
Working voltage 1.8 ~ 3.3V
Shutdown Current 0.7µA
Colour Green
Size 19x14.5x3mm
Country of Origin China



Further Info

The MAX30100 is a heart rate monitor and pulse oximeter in one device. It has two LEDs, a photodetector, better optics, and low-noise analog signal processing to detect pulse oximetry and heart rate signals. The MAX30100 can be powered via a 1.8V ~ 3.3V power source, and it may be turned down by software with very little standby current.
