Elecrow LoRaWan Gateway Module Based on ESP32 with 1.8” LCD - 1 Channel for Long Range Communication (868Mhz)

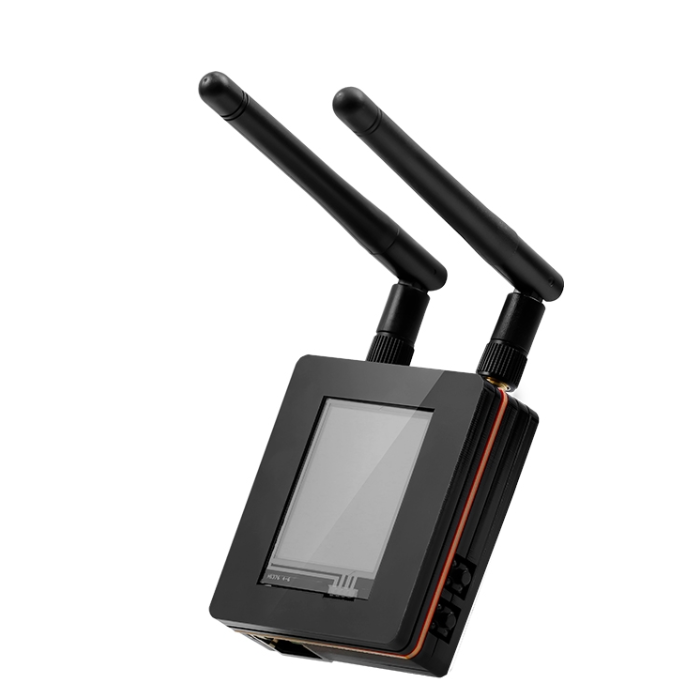

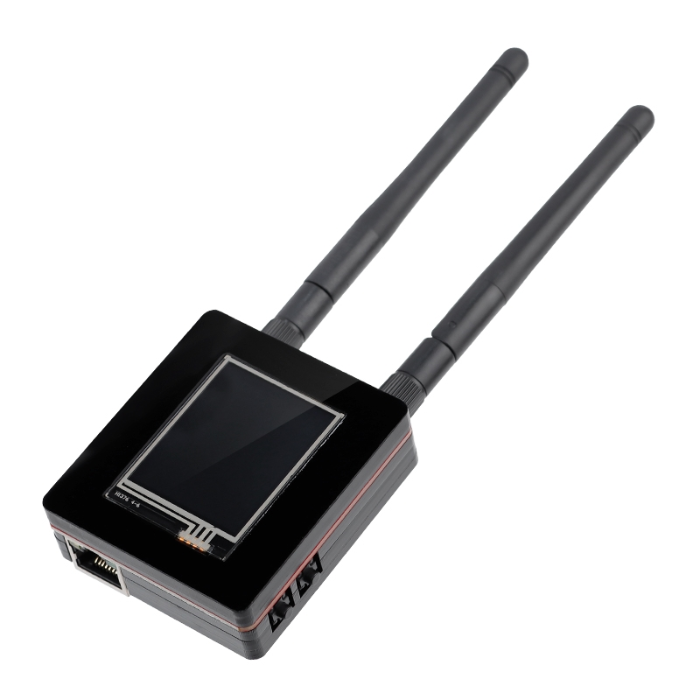

Elecrow Lorawan Gateway Module is the ultimate solution for establishing a robust IoT network with long-range communication capabilities.
Crafted with cutting-edge technology, this gateway module utilizes the powerful ESP32 WROOM 32 processor, ensuring unparalleled performance in data transmission and processing.
Designed to support Lorawan protocol 1.0.3, it offers seamless connectivity with other Lorawan sensors, enabling the creation of a comprehensive sensor acquisition system.
This gateway module features the RA-01H module, which supports a wide frequency range from 803MHz to 930MHz, ensuring extended coverage even in challenging environments.
With both WiFi and Ethernet interfaces, users have the flexibility to choose the most suitable network connection method based on their specific requirements.

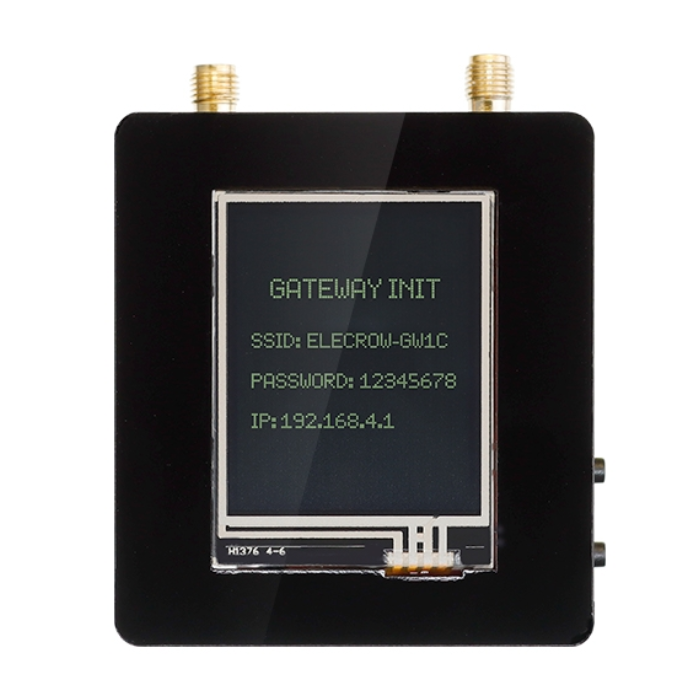

The 1.8-inch SPI-TFT-LCD with touch screen functionality provides an intuitive interface for monitoring data transmission status and IP information, enhancing overall user experience.
Compatible with Arduino and Micropython, developers can easily customize applications and functionality according to their needs, making it ideal for a wide range of IoT projects.
Its compact acrylic shell not only ensures portability but also serves as a protective cover, making it durable for various deployment scenarios. Complete with essential accessories such as antennas and USB cable,
Elecrow Lorawan Gateway Module offers a comprehensive solution for building a reliable IoT network for applications in smart homes, industrial automation, agriculture, and more.
Features:
- Uses ESP32 WROOM 32 as the main controller, with a dual-core 32-bit LX6 microprocessor from Xtensa, providing better performance.
- Integrates RA-01H module supports frequency band: 803MHz - 930MHz.
- Onboard 1.8-inch 128*160 SPI-TFT-LCD, ST7735S driver chip
- Not only supports ESP32 WIFI network connection but also has a 10/100Mbps RJ45 interface that allows Ethernet connection
- Compatible with Arduino and Micropython, making it easier for developers to create custom applications and functionality
- Exquisite acrylic protective shell and small and portable design, making it easy to carry and use
Package Includes:
- 1x LoRaWan Gateway Module
- 1x LoRa Antenna (868Mhz)
- 1x WiFi Antenna
- 1x USB Cable
Specifications:
|
Main Processor Chip |
ESP32 WROOM32 with dual-core 32-bit LX6 microprocessor from Xtensa @ 240MHz |
|
LoRa RF transceiver module |
RA-01H |
|
RA-01H Supports frequency band |
803MHZ-930MHZ |
|
RA-01H Support modulation method |
FSK、GFSK、MSK、LoRa |
|
Channel |
Single channel |
|
Support Lorawan protocol |
Support Lorawan 1.0.3 |
|
WiFi Antenna |
SMA 2.4G WiFi Antenna |
|
Communication distance |
Obstructed state: up to 1 km Unobstructed state: up to 1.8 kilometers |
|
Development environment |
Arduino/Micropython |
|
Interface and function |
1x USB-C interface, 1x Ethernet Interface, 1x Boot Button, 1x Reset Button, 2x Indicator Lights. |
|
Working input voltage |
USB DC-5V |
|
Operating Temperature |
-10°C ~ 65°C |
|
Dimensions |
65mm(L)x58mm(W) |
