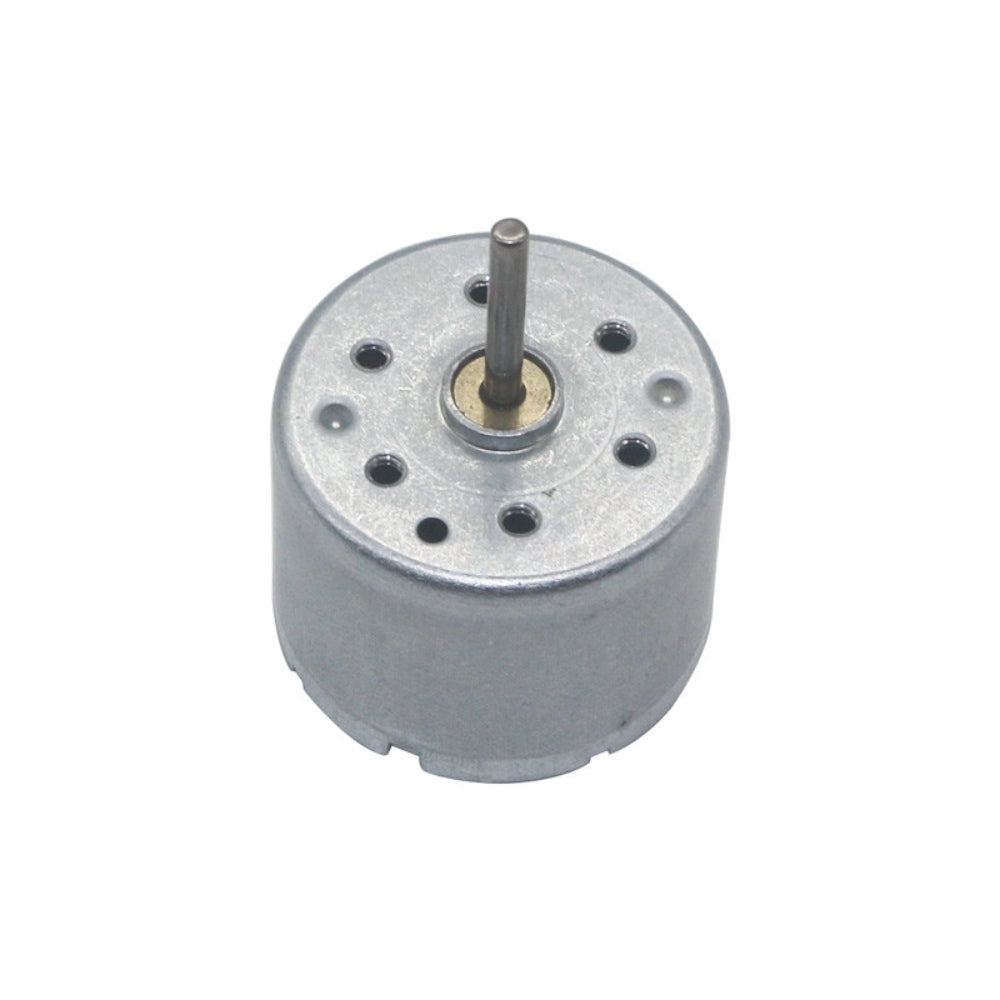

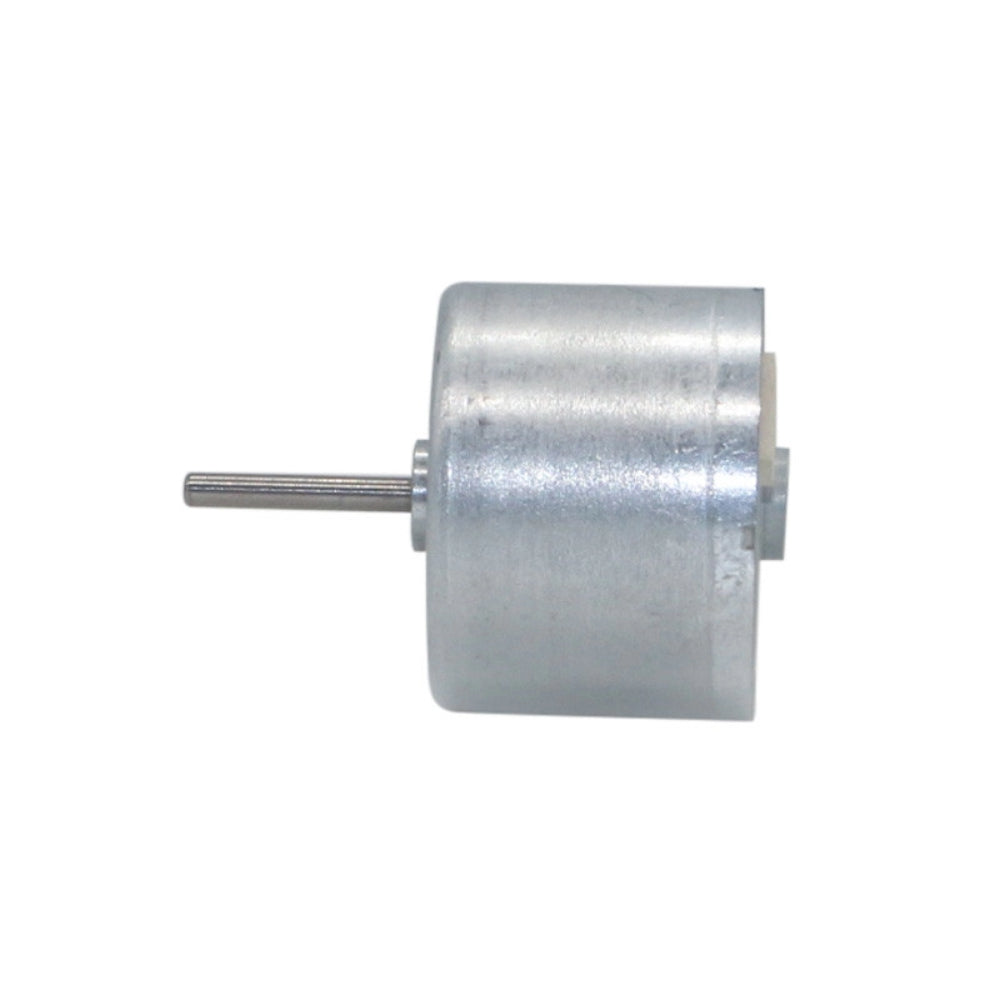

BLDC 2418 12V Small Brushless DC Motors
The 2418 BLDC Motor is a high-speed DC brushless motor specifically designed for use in auto injectors and other precision applications. Built with high efficiency and durability, this motor operates smoothly under high-speed conditions, making it ideal for precise control in automated systems. It features Pulse Width Modulation (PWM) for efficient motor speed control, ensuring smooth acceleration and deceleration. This motor is manufactured by a specialized factory, ensuring reliable performance and longevity. The 2418 BLDC motor is suitable for applications requiring fast and accurate movements, such as in automotive injection systems, robotics, and other industrial automation tasks.Technical Details

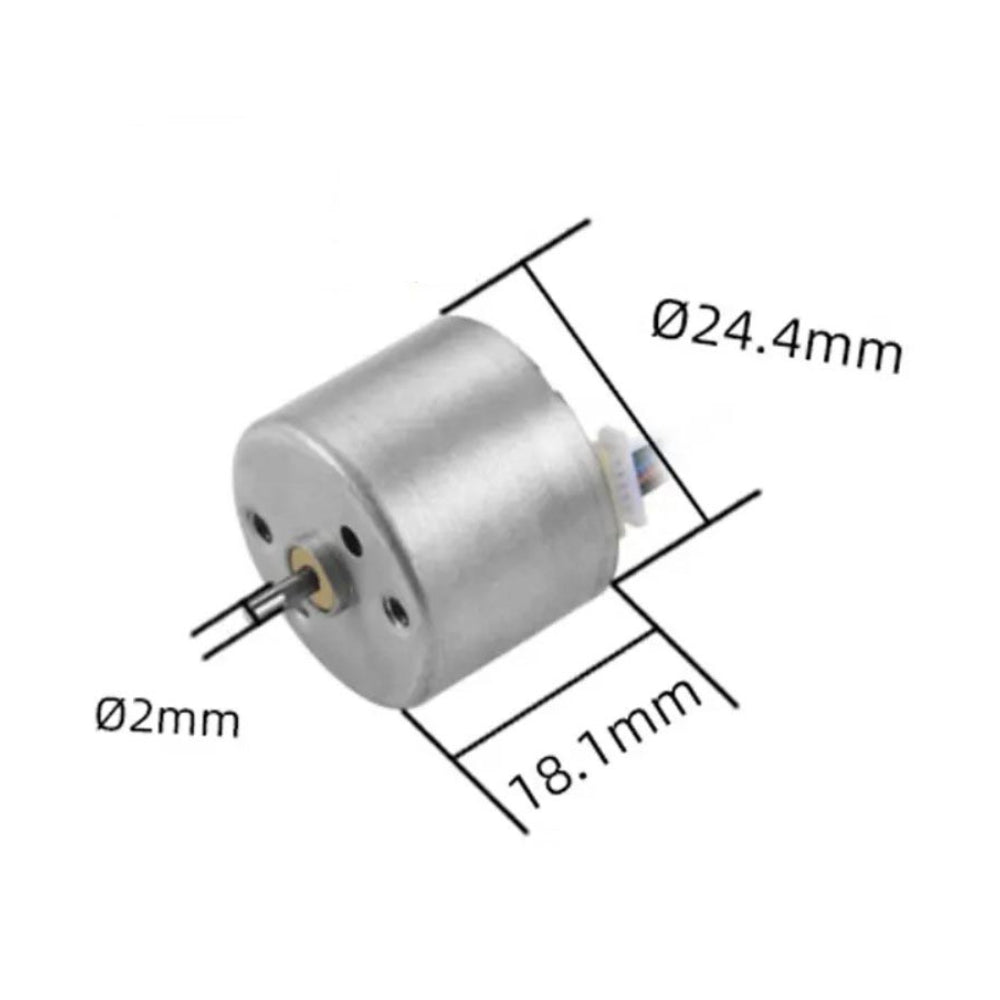

- Diameter of Shaft: 2mm
- Length of Shaft: 5mm
- Input Voltage: DC 24V
- No Load Speed: 8700 RPM
- Load Speed: 6610 RPM
- No Load current: 0.002A
- Load current: 0.04A
- Output Power at Max Efficiency: 2.28W
- Torque at Max Efficiency: 0.034 KG.CM
- Rotation Direction: CW/CCW (Reversible)
- Bearing Type: Sleeve
- Motor Life: 10,000 hours (normal use)
- Speed Adjustable via Controller
- Gearbox Ratio: 3-1000
- Driver Type: Inner Driver
- Suitable Gearboxes:W22 Worm Gear P24 Planetary Gear
Features
- High Speed: 3000 RPM to 9000 RPM
- High Efficiency
- Low Current Consumption
- Low Noise
- Good Quality

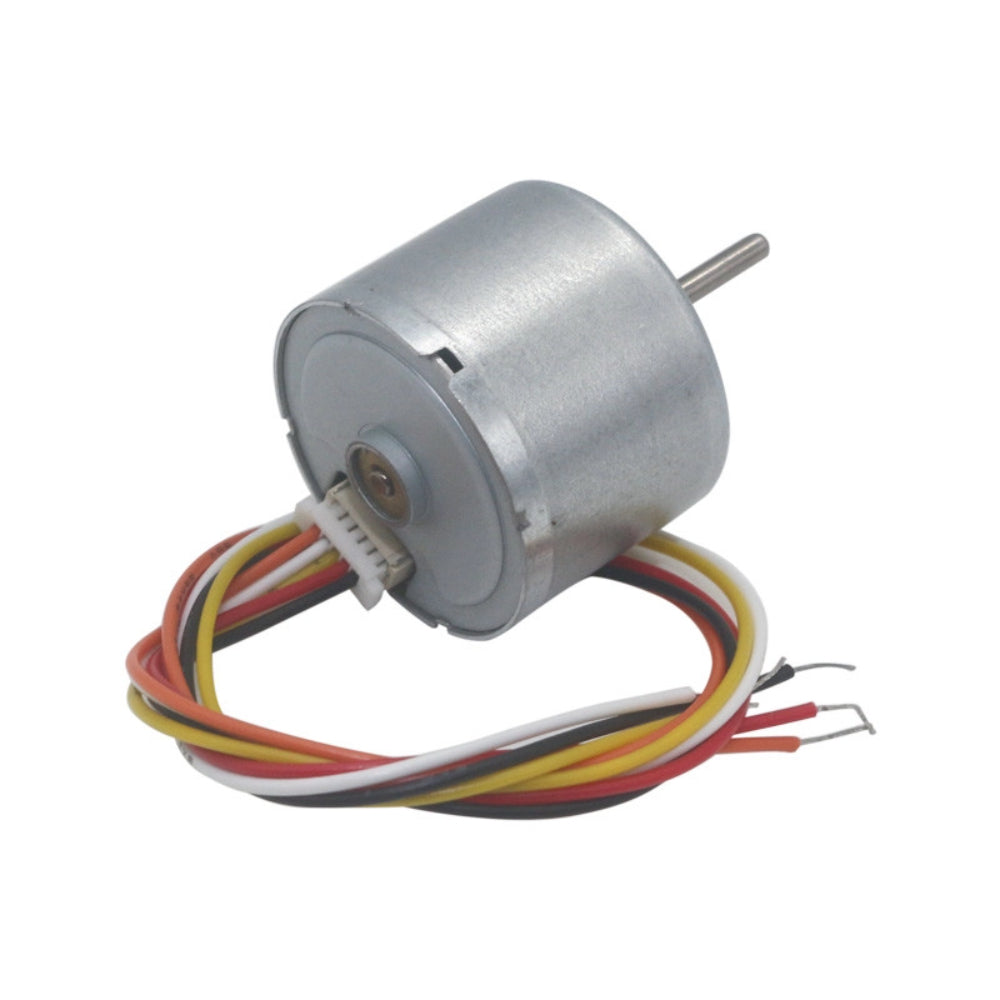

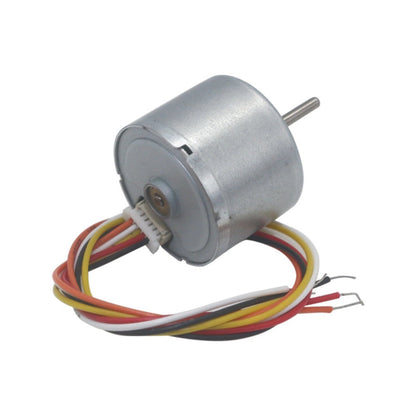

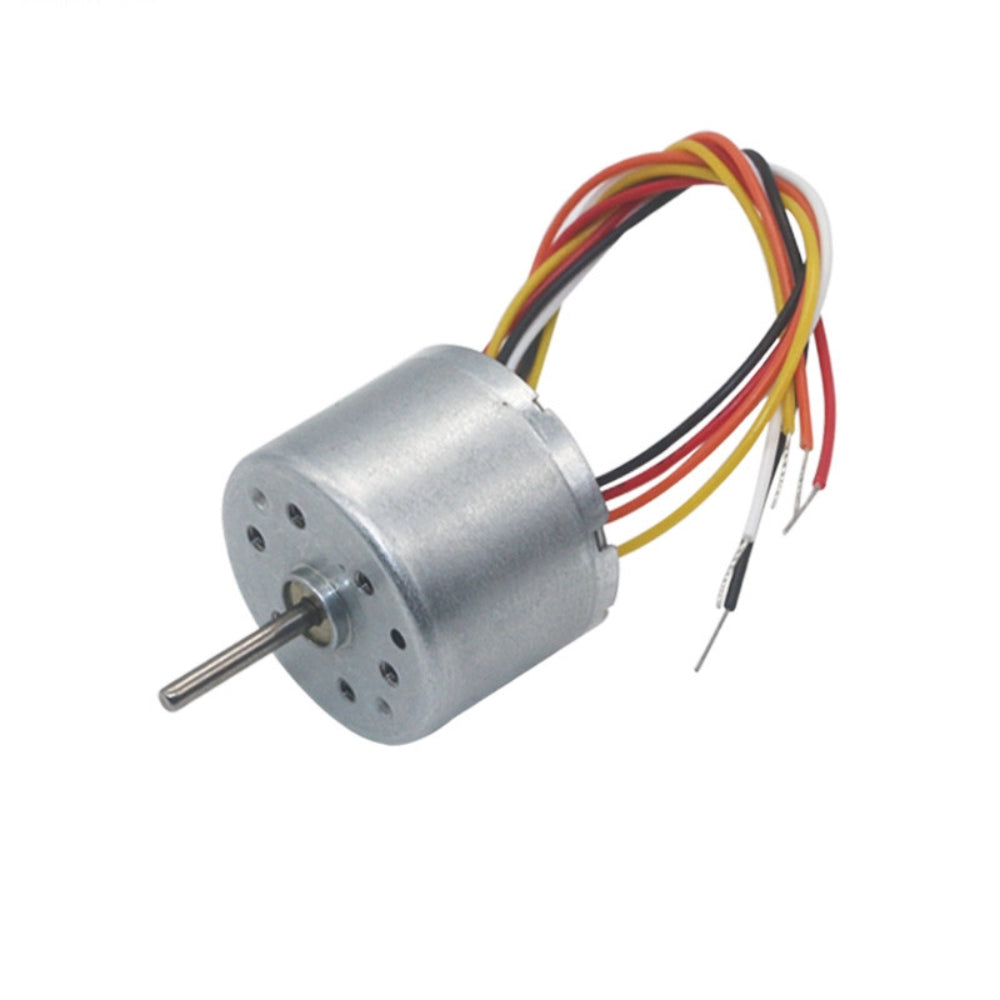

Wiring
- Black Line: Connect DC power supply negative (-)
- Red Line: Connect DC power supply positive (+)
- Yellow Line: Signal line, outputs 18 pulse signals per motor rotation
- White Line: Duty cycle, pulse width speed regulation (15-25kHz)
- Orange Line: Controls motor direction (clockwise/counterclockwise)
Applications :
- RC Vehicles: Powers small RC cars, boats, and planes.
- Drone Motors: Used in small drone propulsion systems.
- Robotics: Drives wheels or actuators in robots.
- Electric Bicycles: Used for lightweight e-bikes.
- Miniature Fans: Powers small cooling fans.
- Power Tools: Used in compact power tools like drills and screwdrivers.
- 3D Printers: Drives extruders or other moving parts.
- Automated Systems: Integrated in conveyor belts or sorting systems.
- Home Appliances: Found in small appliances like vacuums or mixers.
- Medical Equipment: Drives small motors in medical devices.
Physical Attributes
- Weight (gm): 32
- Diameter of Shaft: 2mm
- Length of Shaft: 5mm
- Length of wire: 20mm
Package Includes
- 1 x BLDC 2418 12V Small Brushless DC Motors
